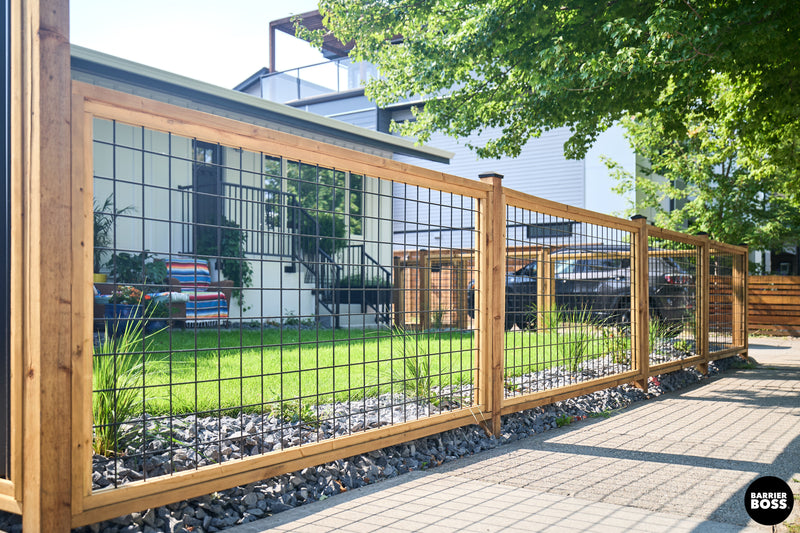

Black Hog Wire Fence Panels (Framed or Unframed) - The Rigid Panel - BarrierBoss™

Load image into Gallery viewer, Black Hog Wire Fence Panels (Framed or Unframed) - The Rigid Panel - BarrierBoss™

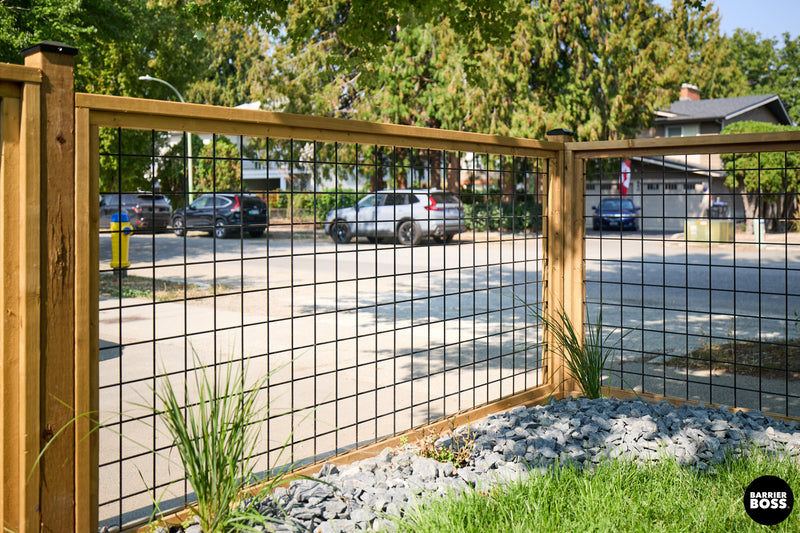

Load image into Gallery viewer, Black Hog Wire Fence Panels

Black Hog Wire Fence Panels

Name: Black Hog Wire Fence Panels
Brand: BarrierBoss
SKU: HW-3x6-UF-44
Price: 49.99 CAD
Availability: InStock
Rating: 4.92 (76 reviews)

$ 49.99

Sale

Shipping calculated at checkout.

Available We Unload Freight Insured Free Returns Warranty

Linear Feet

Corners

Panel Size (Height x Width)

Wire Opening

Frame Type

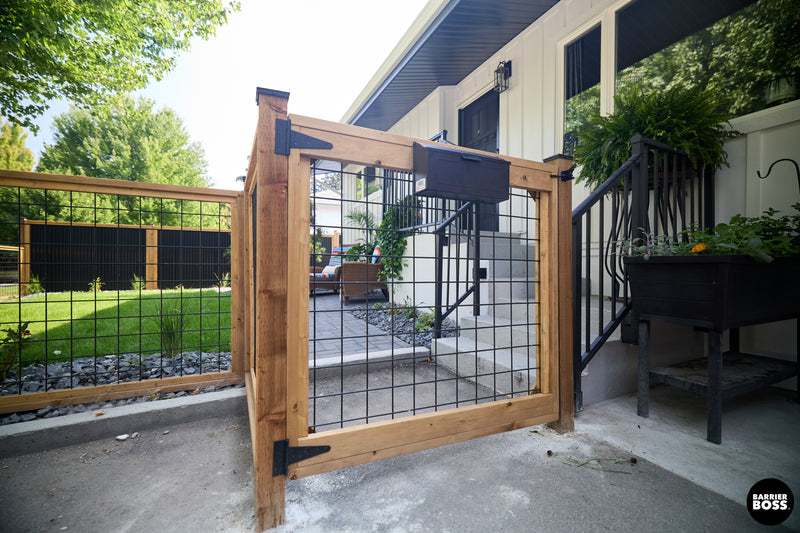

Single Gates (4 ft)

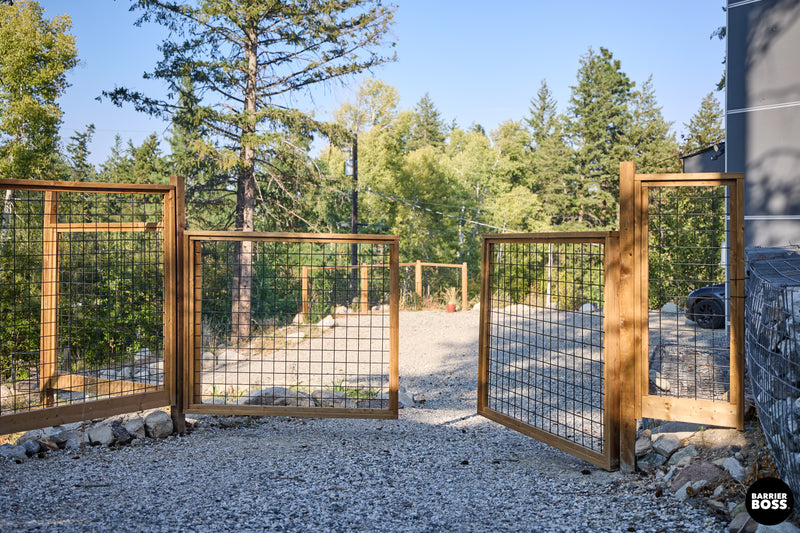

Double Swing (12 ft)

Single Gate Style (matched to panel height)

Double Swing Style (2 gates per swing set)

Add Matching Posts? (optional)

Buy More, Save More: Buy 10+ Panels to Save 5%

Quantity must be 1 or more

SKU: HW-3x6-UF-44

BarrierBoss

Description

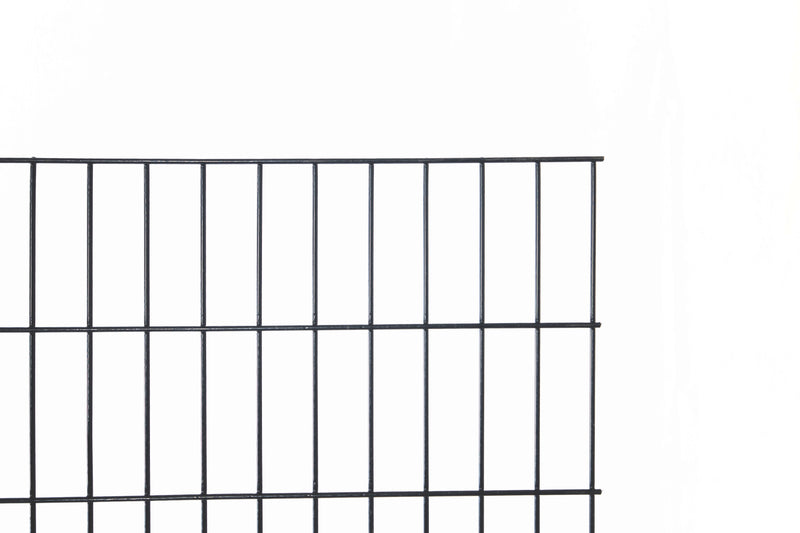

6-gauge dip-coated steel hog wire panels. Hot-dip galvanized after welding. 8 sizes from 3'x6' to 8'x8'. Available unframed, framed in Pressure Treated, or Western Red Cedar. 4 mesh openings. 40-year warranty. Ships factory direct.

Specifications

MEASUREMENTS

Sizes: 3'x6', 3'x8', 4'x6', 4'x8', 5'x6', 5'x8', 6'x8', 8'x8'

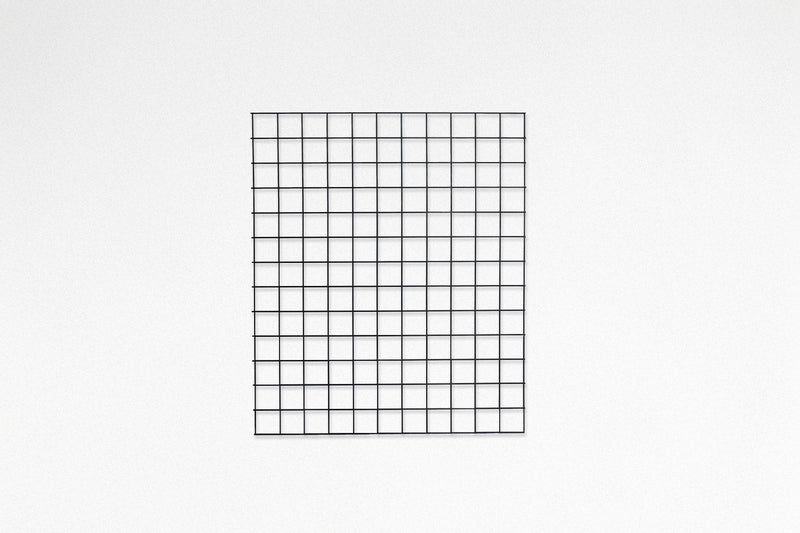

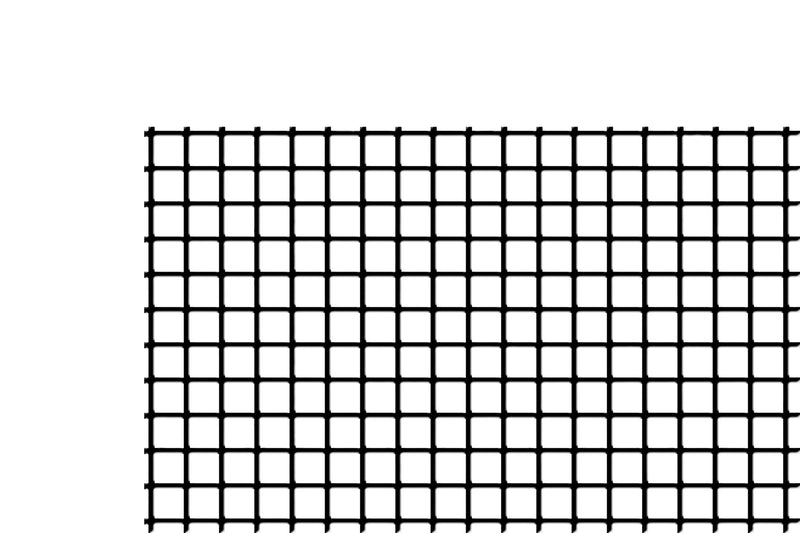

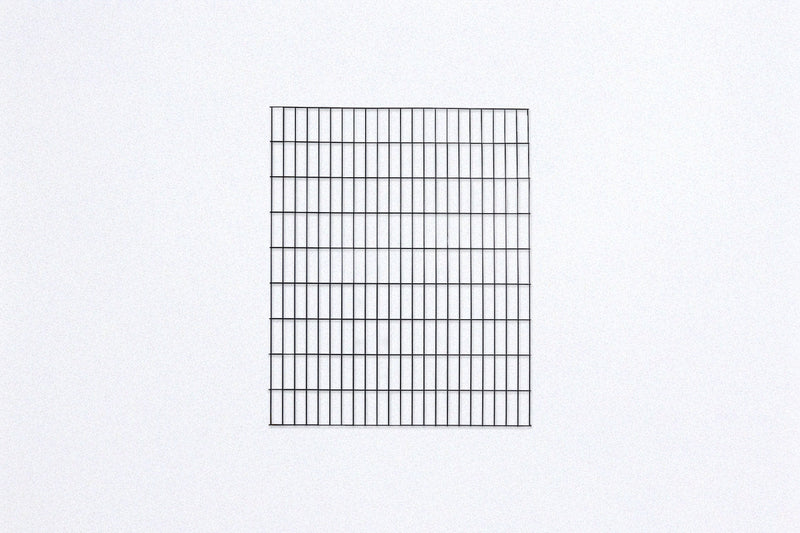

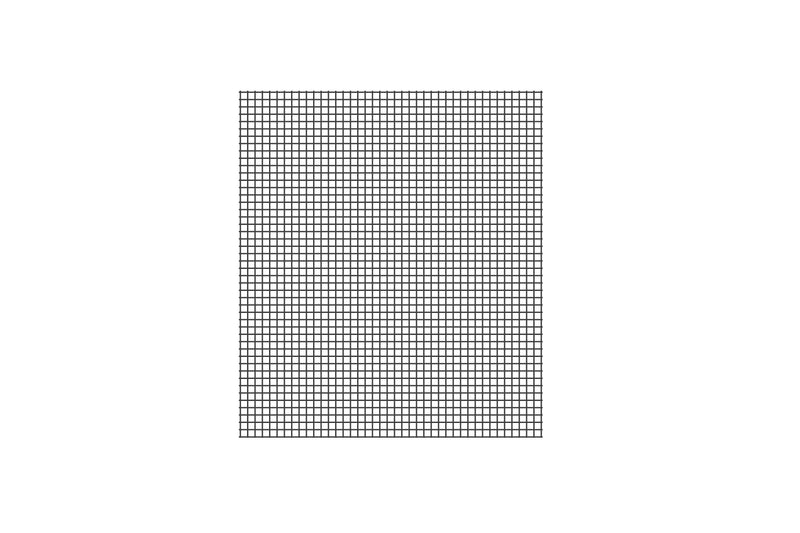

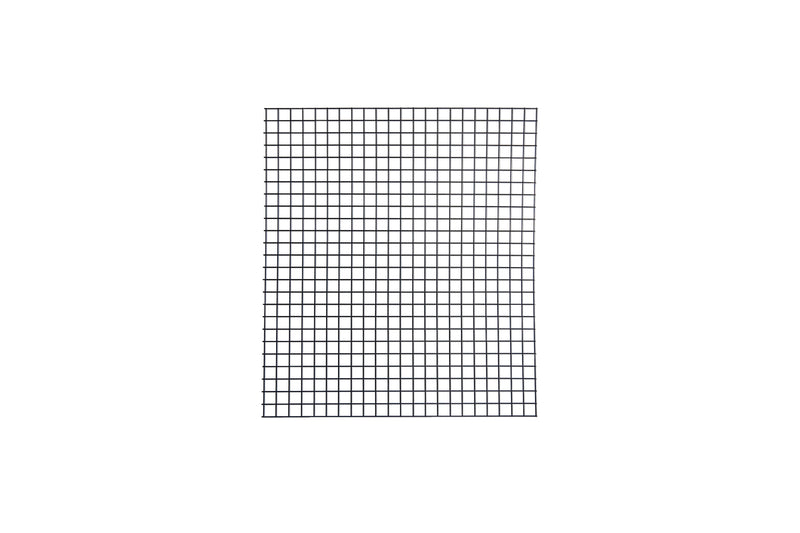

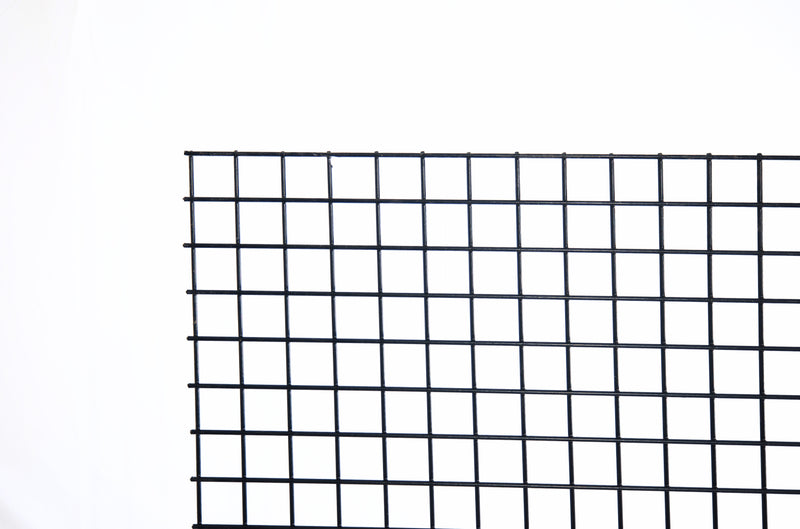

Mesh Openings: 4"x4", 2"x6", 2"x2", 1"x1"
Wire Gauge: 6-gauge (5.5mm before coating, 6.5mm after)
Zinc Coating: 150gsm
Class 3 Heavy Galvanized AFTER Welding — Competitors Pre-Galvanize, Leaving Every Weld Burned Bare

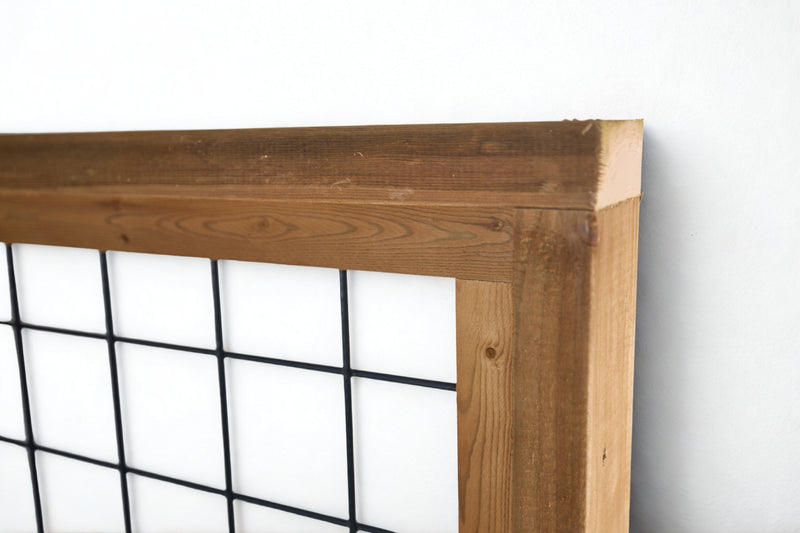

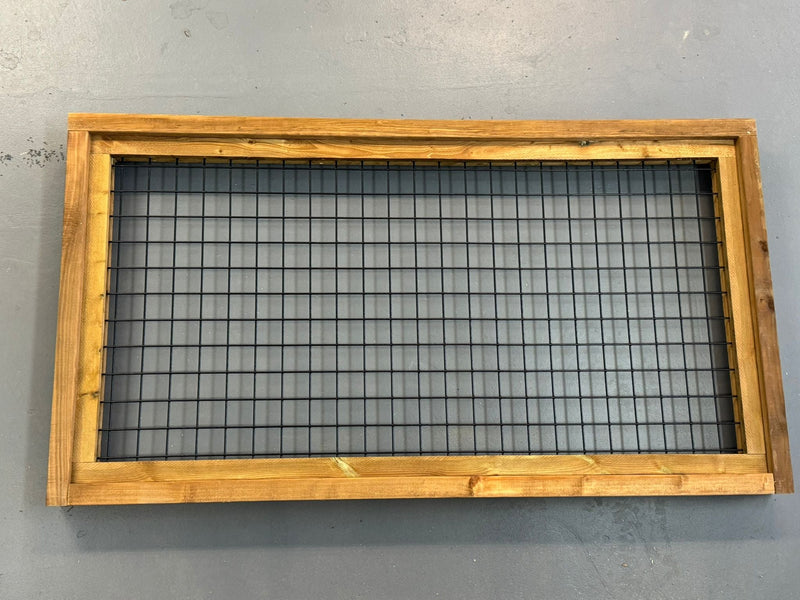

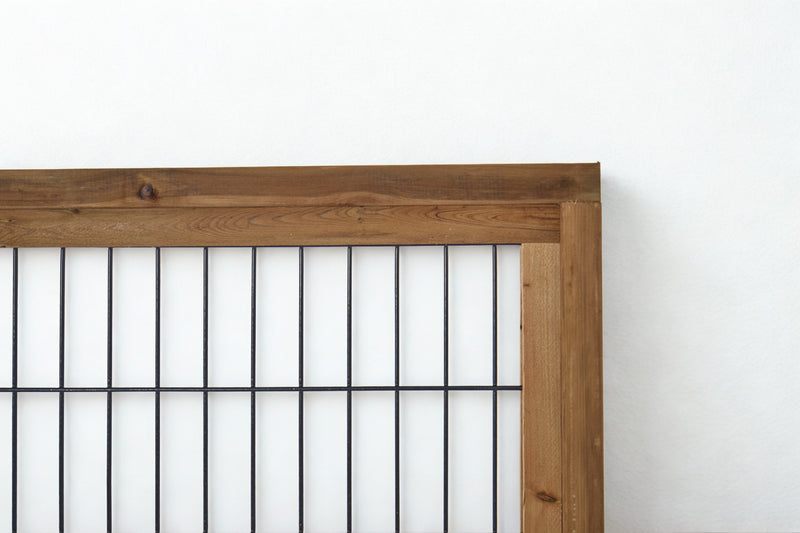

Frame Options: Unframed, Pressure Treated (2"x4"), Western Red Cedar (2"x4")

WARRANTY

STEEL & WIRE — BarrierBoss 40-Year Warranty on the core wire and finish. Dual-layer protection: Class 3 heavy-galvanized zinc applied AFTER welding (150 gsm — the heaviest standard class; competitors electro-galvanize with a fraction of the zinc) + heavy-duty fluidized dip-coat on top
CORTEN OPTIONS — Bare weathering steel; the natural rust patina is intentional and protective (no coating warranty applies)
TREATED LUMBER (Framed Options) — Kiln-Dried, Copper-Azole Pressure-Treated; Lifetime Limited Warranty against structural failure from fungal decay or termite damage — ground-contact and above-ground retention classes, when installed per applicable building codes. Field cuts must be sealed with two coats of a copper-based end-cut preservative (min. 1% copper) to maintain coverage
WESTERN RED CEDAR (Framed Options) — Kiln-Dried; naturally decay- and insect-resistant; 10-Year Limited Warranty against manufacturing defects and premature structural decay
FACTORY ASSEMBLY — 5-Year Limited Workmanship Warranty
CARE — We recommend maintaining exposed wood with Stain & Seal Experts oil-based penetrating stain (available from BarrierBoss) to extend its life and keep the finish looking new
INSTALLATION — Proper installation is the installer's responsibility: correct concrete mix, post-hole diameter and depth for your soil and frost line, and panels set square, plumb and level. Damage or premature wear from improper installation is not covered
MODIFICATIONS — Cutting, drilling or altering the steel exposes unprotected edges and voids the steel & coating warranty on the modified component. Need a custom size? We cut to order — ask us before you cut
Natural weathering, checking and minor warping of wood are normal characteristics — not defects

Description

Premium Black Hog Wire – The Tough Panel: Clean Strength, Modern Edge

Why Choose BarrierBoss Black Hog Wire Panels

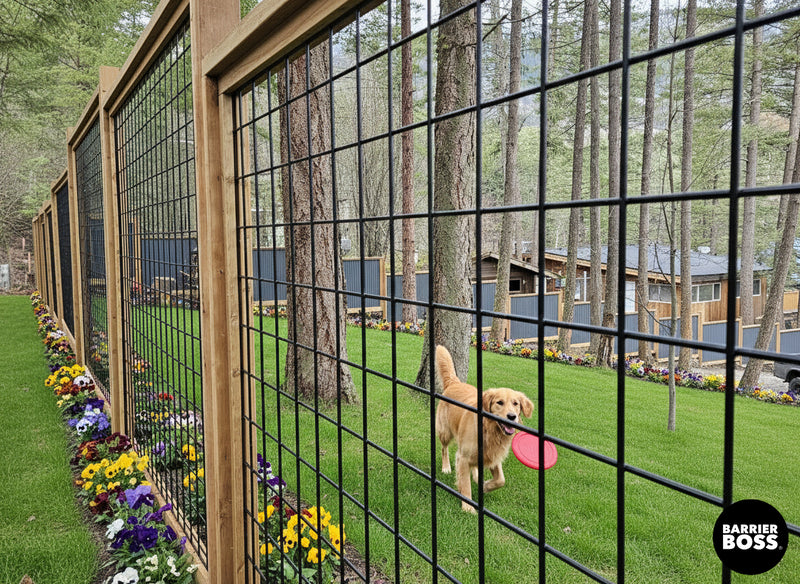

These black hog wire panels combine serious 6-gauge strength with a sleek, deep black fluidized dip-coat finish that looks sharp against any backdrop. Built for Canadian farms, modern yards, acreage perimeters and livestock setups, they offer unmatched durability and clean style. Frame them with KDBT lumber or Western Red Cedar to match your property’s look and last for decades.

Pro Tip:

Customize openings to balance privacy and airflow — tighter mesh for pet or child safety, wider for livestock or open sightlines. Pair with Western Red Cedar framing for a high-contrast, modern-rustic look that complements prairie, foothill or woodland settings beautifully.

Strong, Sleek, and Ready for Any Project

BarrierBoss premium black hog wire panels are engineered for real performance and timeless appeal. Made from 6-gauge hot-dipped galvanized steel wire and finished with a thick, fluidized black dip-coat, they resist rust, chipping and fading far better than lighter-gauge or dip-coated alternatives — perfect for harsh Canadian weather.

Choose premade panels for quick, professional-grade installs or unframed sheets when you need flexibility for corners, slopes or custom runs. Mesh openings range from 1"x1" for tight security (pets, gardens, small livestock) to 4"x4" for open livestock containment with excellent visibility and airflow. Standard panel sizes include 3’×6’, 3’×8’, 4’×6’, 4’×8’, 5’×6’, 5’×8’, 6’×8’ and 8’×8’, with custom dimensions available.

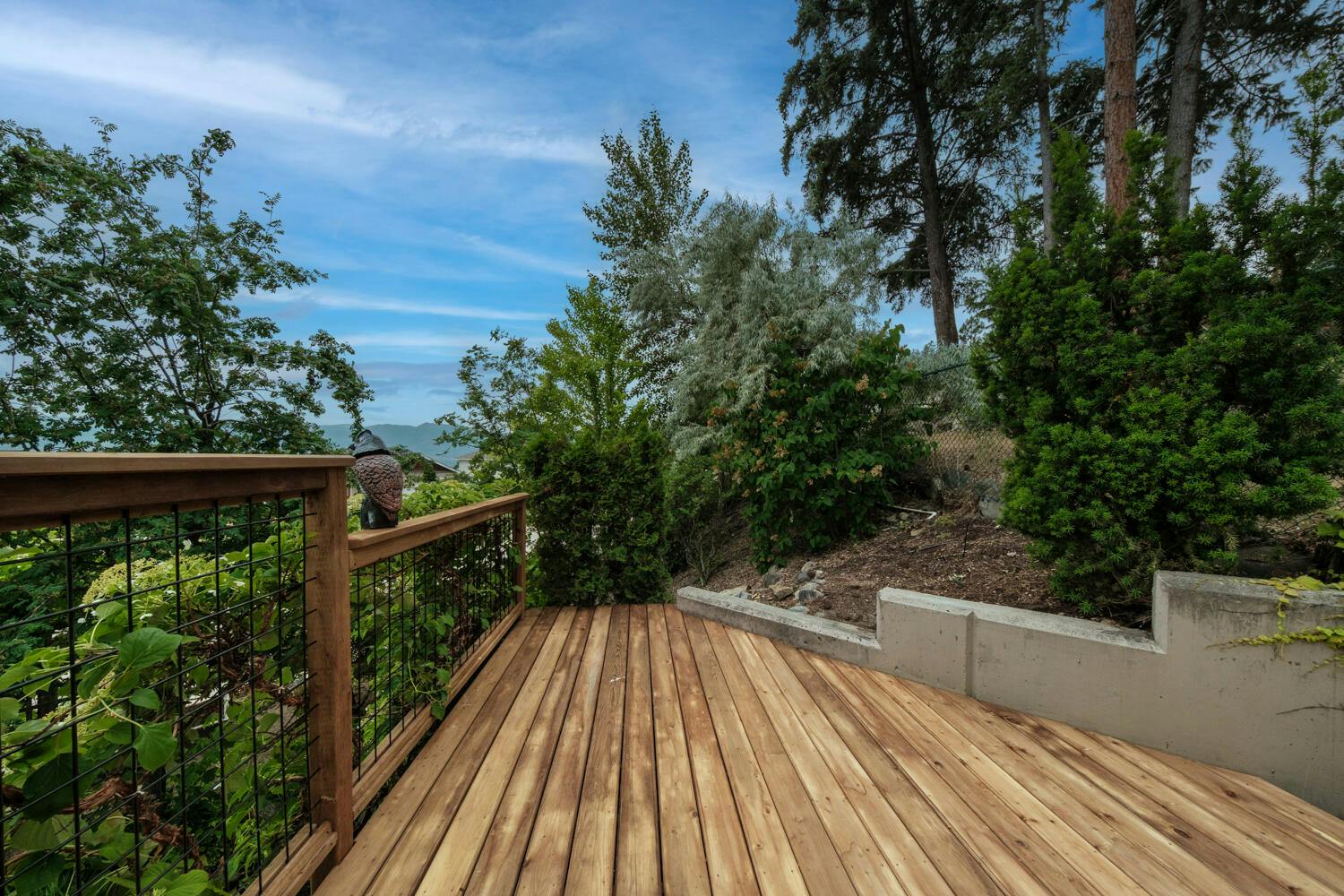

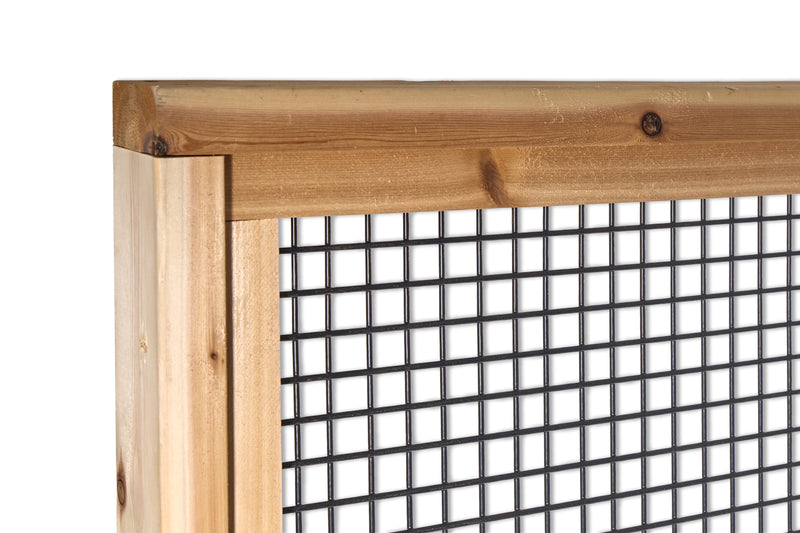

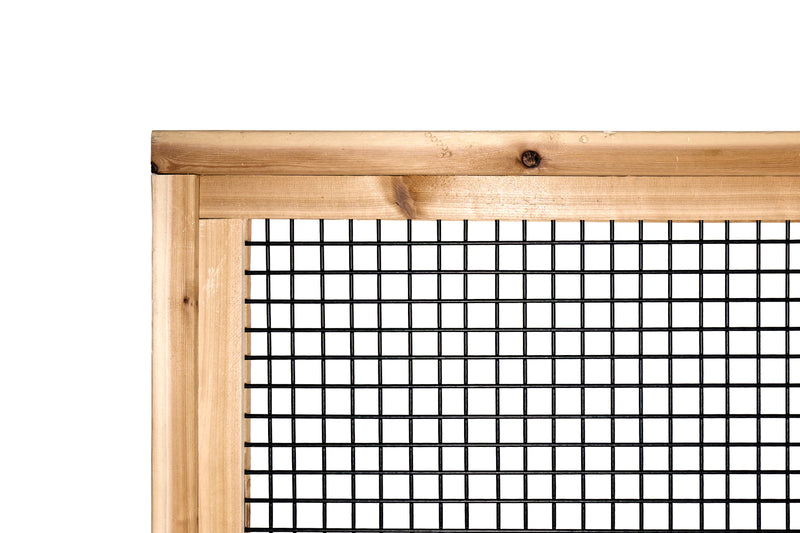

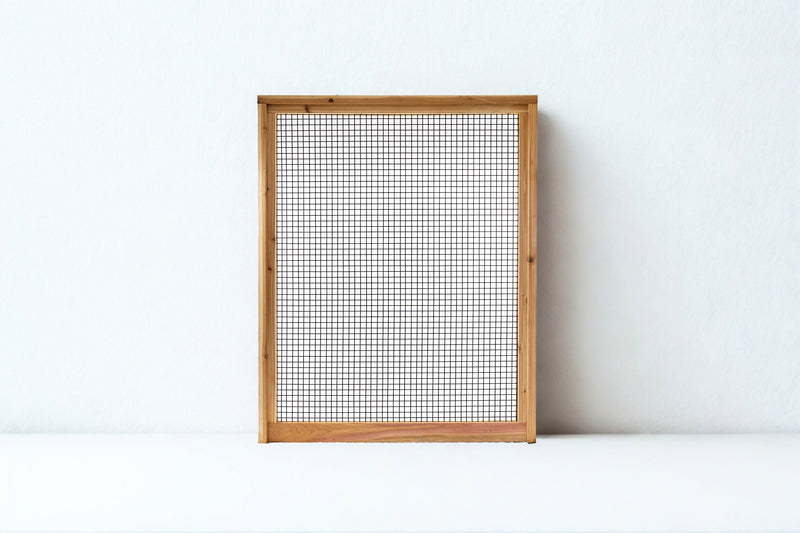

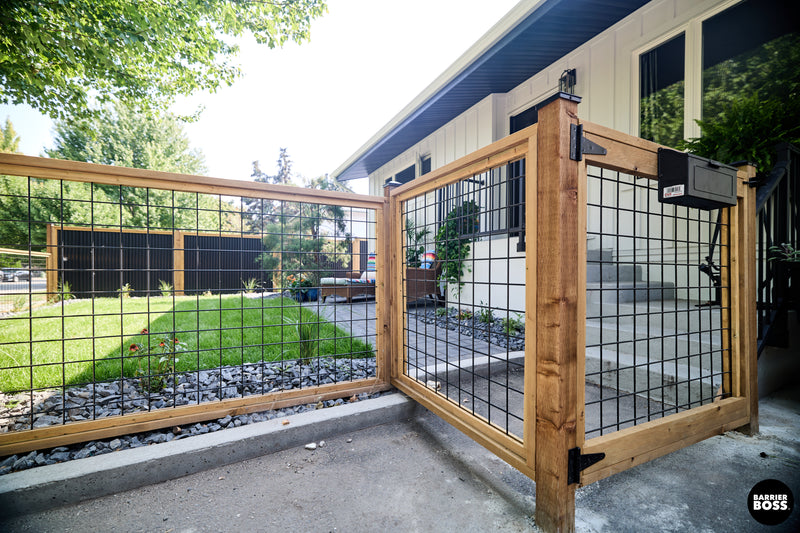

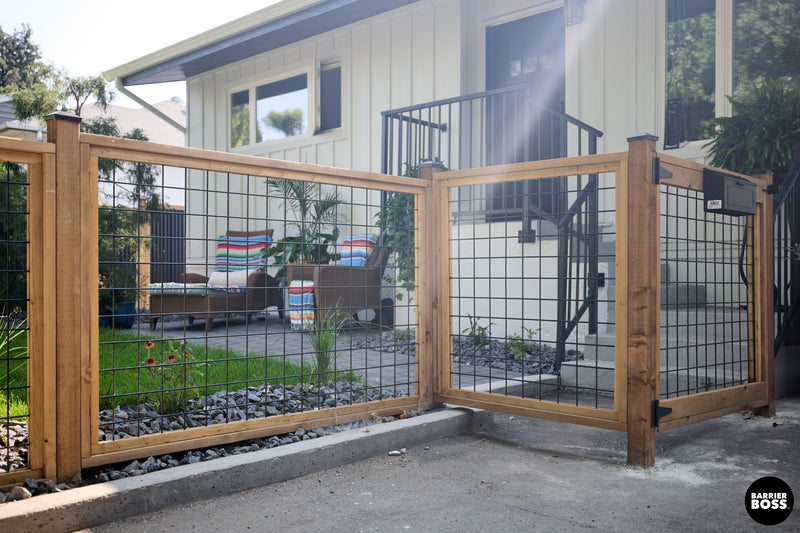

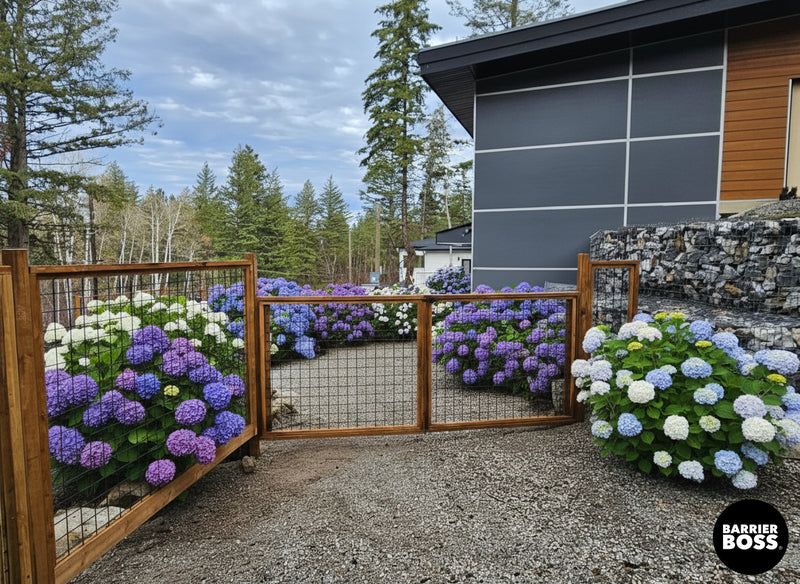

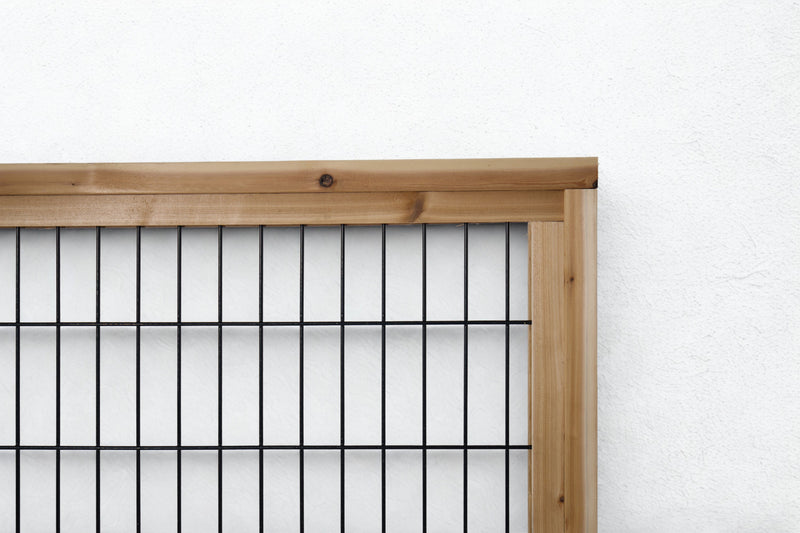

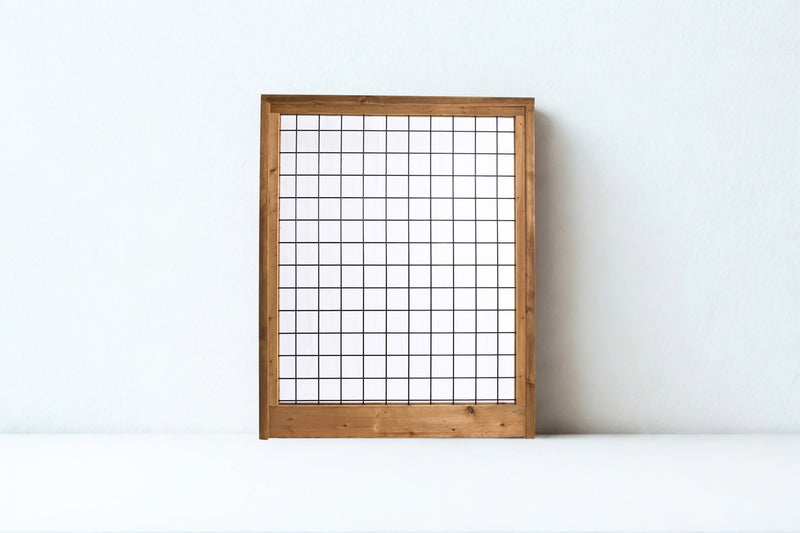

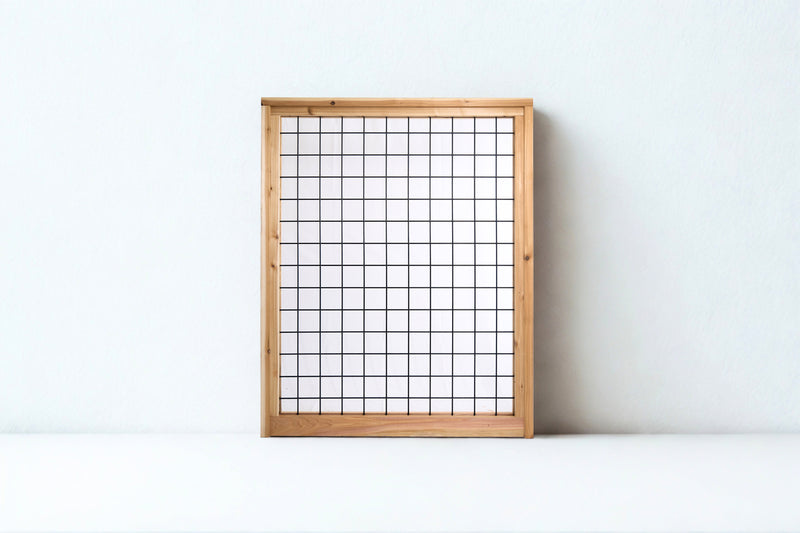

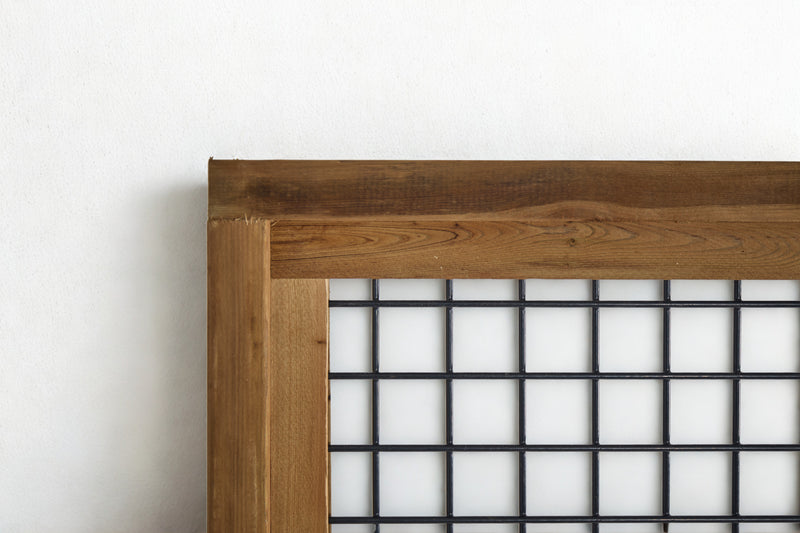

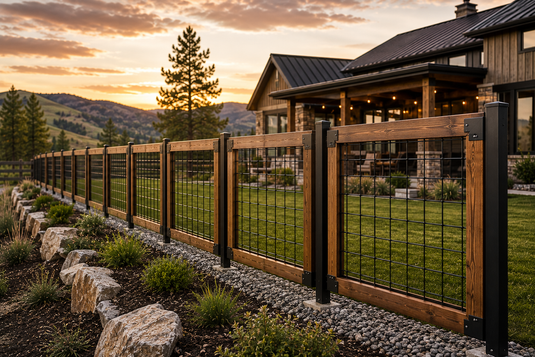

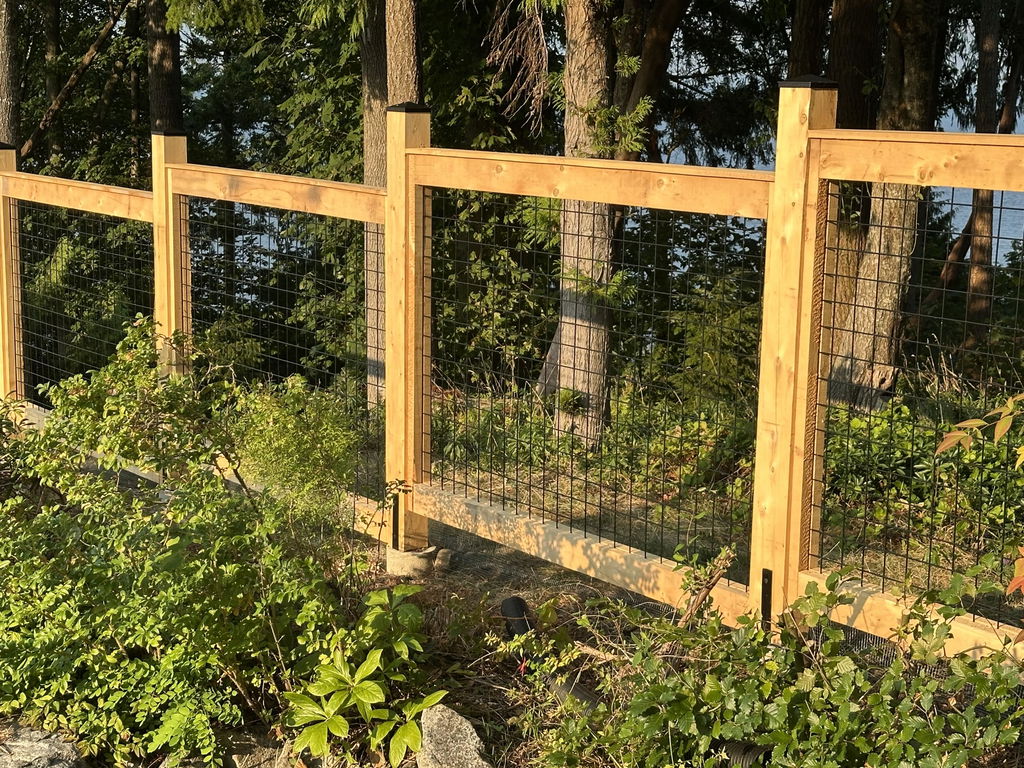

Frame them to fit your vision: KDBT pressure-treated lumber for dependable, economical strength and a smooth finish ready for staining, or Western Red Cedar for warm, aromatic natural wood that pairs perfectly with the black finish. Cedar-framed black hog wire is especially popular for visible sections near homes, driveways or rural entrances.

Installation is straightforward for DIYers or fencing crews — panels attach easily to standard posts. The dip-coat finish means no painting, no seasonal touch-ups, and no worries about corrosion through wet winters, prairie wind or summer sun.

Steel is fully recyclable and wood framing is responsibly sourced — a practical, sustainable choice for long-term projects.

Please note: Hog wire panels do not include fence posts.

Did You Know?

The thick fluidized black dip-coat on these panels creates a deeper, more uniform layer than standard dip-coated — delivering better scratch resistance and colour retention even after years of exposure to Canadian elements.

Features & Benefits

6-gauge hot-dipped galvanized steel wire — exceptional strength and longevity
Durable black fluidized dip-coat finish — superior rust, chip and fade resistance
Framing options: KDBT lumber for rugged stability or Western Red Cedar for natural warmth
Mesh sizes: 1"x1", 2"x2", 2"x6", 4"x4" — perfect for livestock, pets, gardens or modern aesthetics
Standard sizes 3’×6’ to 8’×8’ with full custom sizing available
Easy installation for DIY or professional projects
Versatile for farms, modern yards, acreage boundaries, livestock areas and garden enclosures

Key Takeaways

Sleek black finish delivers modern style with serious durability
6-gauge heavy-galvanized steel + thick dip-coat = long-lasting performance
Cedar or KDBT framing options for a clean, tailored look
Multiple mesh and size choices for any containment or design need
Zero-maintenance fencing that stands up to Canadian weather

Deep Dive Into Hog Wire Fencing

Shop the Look

Matching Hog Wire Gates
Full Hog Wire Fence Collection

Why Choose BarrierBoss?

40-year warranty
factory-direct pricing
BarrierDirect delivery on our own trucks

Technical Specifications

Wire gauge by mesh size Our 2″ × 2″ and 4″ × 4″ mesh panels are built from 6-gauge (4.88 mm) hot-dipped galvanized steel. Our 1″ × 1″ mesh panels are built from 10-gauge wire (~3 mm bare, ~4 mm after dip-coating) — the heaviest wire commonly produced in a 1″ opening (industry standard for 1″ × 1″ is 12-gauge, so our 10-gauge runs heavier than the market). 6-gauge isn’t manufactured in 1″ × 1″ grids anywhere in the industry — a 6′ × 8′ panel at that weight would run 55–60 kg, outside practical fencing range.

Wire Gauge	6-gauge (4.88mm) heavy-duty welded steel
Finish	Hot-dip galvanized + fluidized dip-coat (not dip-coated)
Mesh Openings	4"x4", 2"x6", 2"x2", 1"x1"
Sizes	3'x6' to 8'x8'
Color	Midnight Black
Frame Options	Unframed, Pressure Treated, Western Red Cedar, or all-steel kit
Fire Rating	Non-combustible (all-steel option)
Warranty	40-year warranty
Brand	BarrierBoss

Galvanized After Welding — Why Our Welds Don't Rust

Every BarrierBoss panel is Class 3 heavy galvanized — 150 gsm of zinc, the heaviest standard wire galvanizing class — applied AFTER welding, then sealed in our heavy-duty dip-coat. Welds are the natural weak point of any welded panel: typical competitor panels are welded from pre-galvanized wire, which burns the zinc off every wire intersection and leaves hundreds of bare-steel points hiding under a thin powder coat. That's where they rust first. Our zinc goes on after the welds are made, so the entire panel — welds included — carries full protection. It's the reason we back the wire and finish for 40 years, nearly three times the coverage of leading hog wire competitors.

Product is excellent

Product is excellent. Customer service was responsive and productive.

8' x 8' / 2” x 2” / Unframed

Great Product!

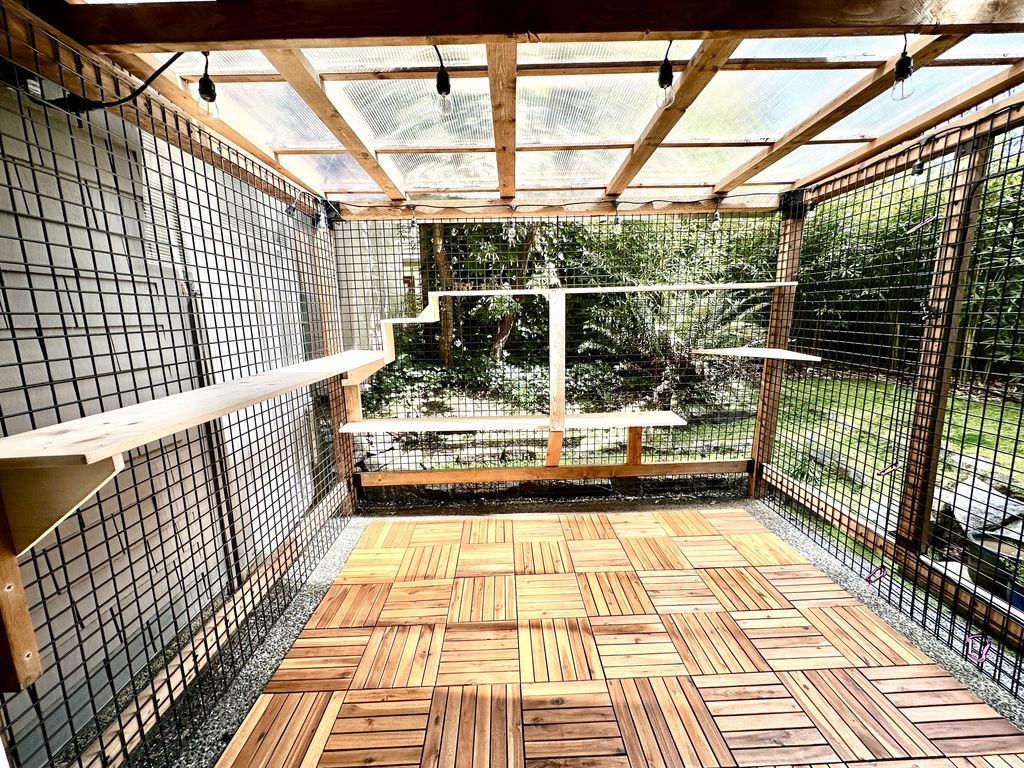

Wire mesh and the rubber coating is so well built. The catio I built looks great

Minimum order requirement B.S.

So, I call the company to place my order with them and am told I have to order a minimum number of wire panels to get my order. The minimum is about 50 times the number I need for my project. Unreal!

Thank you for your feedback — we completely understand the frustration, and we appreciate you taking the time to reach
out.

Here's the reality behind our order minimums: we manufacture every panel in-house and deliver them ourselves on our
own trucks — no third-party carriers, no freight brokers. From our facility in the Pacific Northwest to Georgia,
that's a 2,500+ mile delivery with our crew unloading at your door.

The minimum order thresholds exist because the cost of running a dedicated truck cross-country is the same whether
we're delivering 5 panels or 500. At lower quantities, the freight cost per panel would exceed the cost of the panel
itself — making the order uneconomical for both of us.

That said, we do offer a Third Party Freight (LTL) option for smaller orders that don't meet our in-house delivery
minimums. It ships via commercial carrier and would require a forklift or loading dock on your end, but it opens up
the door for smaller quantities. We'd be happy to put together a custom LTL quote for your project — just give us a
call or email with your panel count and zip code and we'll get you a number.

For very small quantities (just a few panels), a local fence supplier or big-box retailer may also be worth checking.

We'd love to earn your business — reach out anytime and we'll find the best option for your project.

— The BarrierBoss Team

5' x 6' / 2” x 2” / Unframed

Looks really nice and sturdy

Looks really nice and sturdy, I haven’t used it yet as it is for a fence that will be built in the spring.

Worth the wait

The quality is outstanding

Shipping Across Canada

Best in Class Warranty

Secure Checkout and Payment Plans

Pairs well with...

Because really good boys deserve a good view.

The Puppy Peek Window — Tested by Barrier Bob

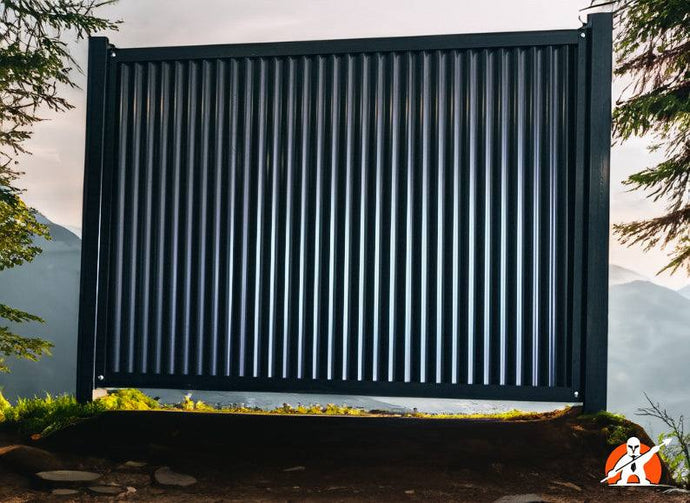

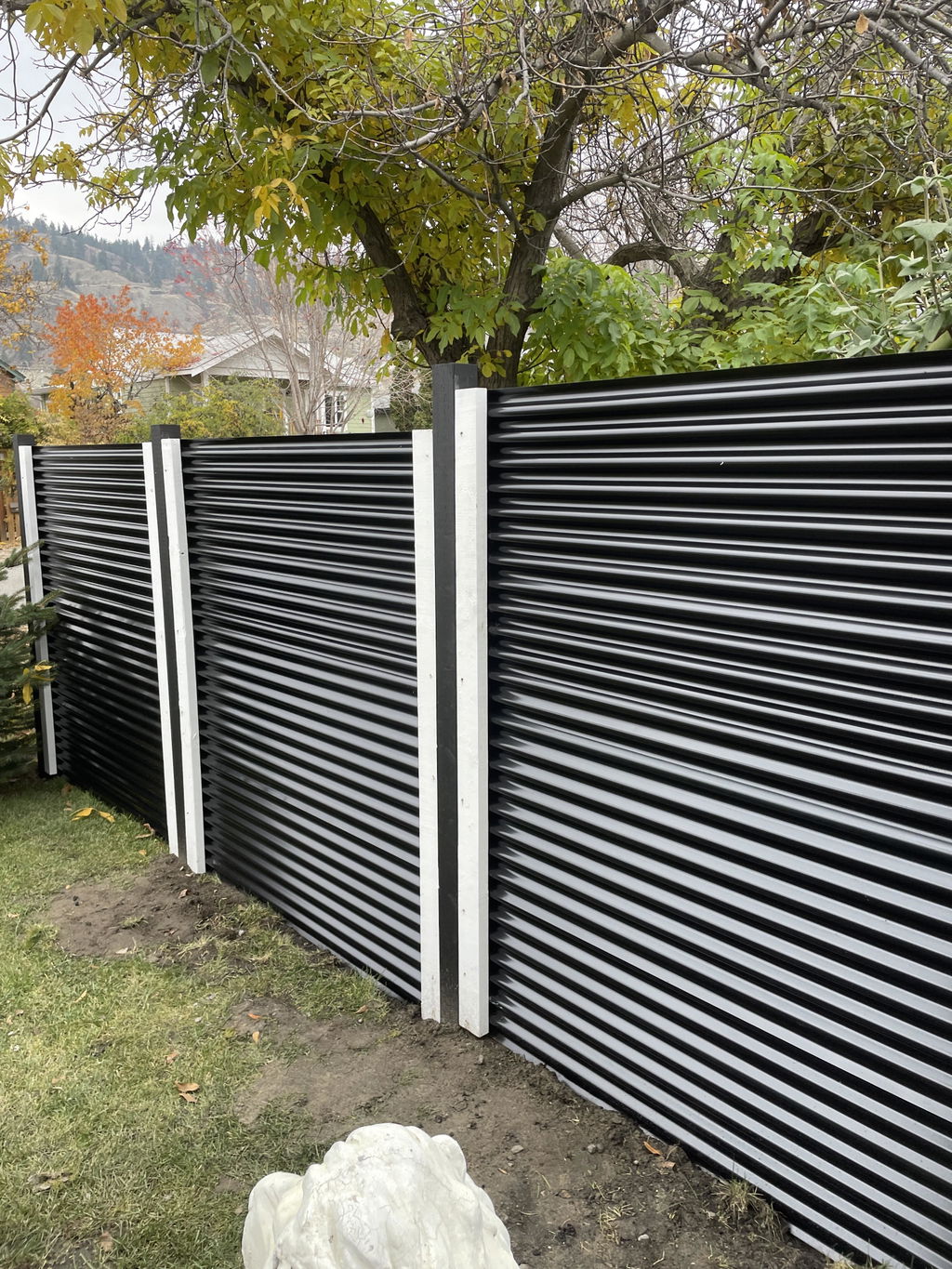

Meet our signaturePuppy View Hole— designed for curious canines like Barrier Bob, our resident fence inspector. Built right into our modern corrugated steel panels, it gives your dog a safe, clear peek at the outside world without compromising privacy or style. It’s form meets function — and tail wags guaranteed.
