How to Put Up Wire Mesh Fencing That Lasts

1. Posts: Steel vs. Wood vs. T-Post

Posts are the skeleton of your fence. Pick the wrong type and no amount of premium wire will save you from leaning, heaving, or outright collapse. Here's what works across Canada.

Steel Posts (Square Tube or Round Pipe)

Steel square tube (typically 50 x 50 mm or 60 x 60 mm) is the go-to for clean, modern wire mesh fencing. It's rigid, rot-proof, and pairs perfectly with panel clips or U-bolt brackets. For residential hog wire fence panels and deck railings, steel posts give you a tight, professional look without the seasonal warping that wood introduces.

Pressure-Treated Wood Posts

A 100 x 100 mm (4 x 4 in) or 150 x 150 mm (6 x 6 in) pressure-treated post is the classic choice for garden fences, property lines, and that farmhouse aesthetic. Use ACQ or MCA-treated lumber rated for ground contact. Attach wire mesh panels with galvanized fence staples or wood-screw panel brackets. Expect to replace wood posts every 15 to 20 years, even with treatment.

T-Posts (Steel Studded Posts)

T-posts are the budget, fast-deploy option for field fencing, livestock runs, and temporary enclosures. You pound them in with a T-post driver (no concrete needed), then attach wire mesh with T-post clips. They're functional, not pretty. Not ideal for front-yard fences or anything visible from the street.

2. Fasteners & Hardware for Every Setup

This is where most DIYers under-buy. You don't just need "some screws." You need the right fastener matched to your post material and panel gauge.

• U-bolts (steel posts): wrap around the post and clamp the panel wire. Use stainless or galvanized U-bolts, minimum 6 mm (1/4 in) diameter for 6-gauge wire panels. Space every 300 to 400 mm (12 to 16 in) vertically.
• Panel clips / saddle clamps (steel posts): bolt-on clips that sandwich the wire between the clip and the post face. Cleaner look than U-bolts, slightly more per unit.
• Galvanized fence staples (wood posts): heavy-duty 40 to 50 mm (1.5 to 2 in) staples driven at a slight angle. Use a minimum of 3 staples per wire intersection on end posts, 2 on line posts.
• T-post clips (T-posts): twist-on wire clips that hook into the T-post studs. Quick to install, though they can loosen over time, so recheck annually.
• Hog rings (panel-to-panel joins): C-shaped rings crimped with hog ring pliers to join two panels or attach mesh to a top rail. Use 12-gauge galvanized rings minimum.
• Tension bands & brace bands (corner/gate posts): essential for maintaining tautness on longer runs. Without them, panels sag from the corners inward.

3. Essential Tools List

Here's your full shopping list. Most of this you likely own or can rent for under $100 CAD for a weekend.

• Post-hole digger or power auger: a manual two-handle digger works for 4 to 6 posts; rent a gas auger for anything more.
• Level (1,200 mm / 4 ft): plumb every single post, no exceptions.
• String line & stakes: keeps your fence line straight over long runs.
• Tape measure (7.5 m / 25 ft minimum).
• Socket wrench set or ratchet: for U-bolts and panel clip hardware.
• Wire cutters / bolt cutters: for trimming panel edges to fit. You need bolt cutters rated for 6-gauge wire, not dainty snips.
• Angle grinder with cut-off disc: if cutting steel posts to height.
• Drill/driver with bits: for pre-drilling wood posts or driving lag bolts.
• T-post driver: if using T-posts (a weighted sleeve you slam down over the post).
• Hog ring pliers: for crimping hog rings on panel-to-panel connections.
• Gloves (leather work gloves): wire edges are unforgiving.
• Safety glasses: mandatory when cutting wire or grinding steel.

5. Comparison Table: Post & Fastener Options

6. Step-by-Step Installation Overview

1. Plan your layout. Mark your fence line with stakes and string. Identify corner posts, gate posts, and line posts. Space line posts 1,800 to 2,400 mm (6 to 8 ft) on centre. To estimate how many panels and posts your run needs, start with our fence calculator.
2. Call before you dig. Contact your provincial utility-locate service (it's free across Canada) to mark underground lines.
3. Dig post holes. Below frost line, with a gravel base. Set corner and end posts first.
4. Set posts in concrete. Plumb each post with your level in two directions. Brace with scrap lumber until the concrete cures (24 to 48 hours minimum, 72 hours ideal before hanging panels).
5. Install top and bottom rails (if applicable). Not all wire mesh fences need rails, though they add rigidity, especially on runs longer than 4,800 mm (16 ft).

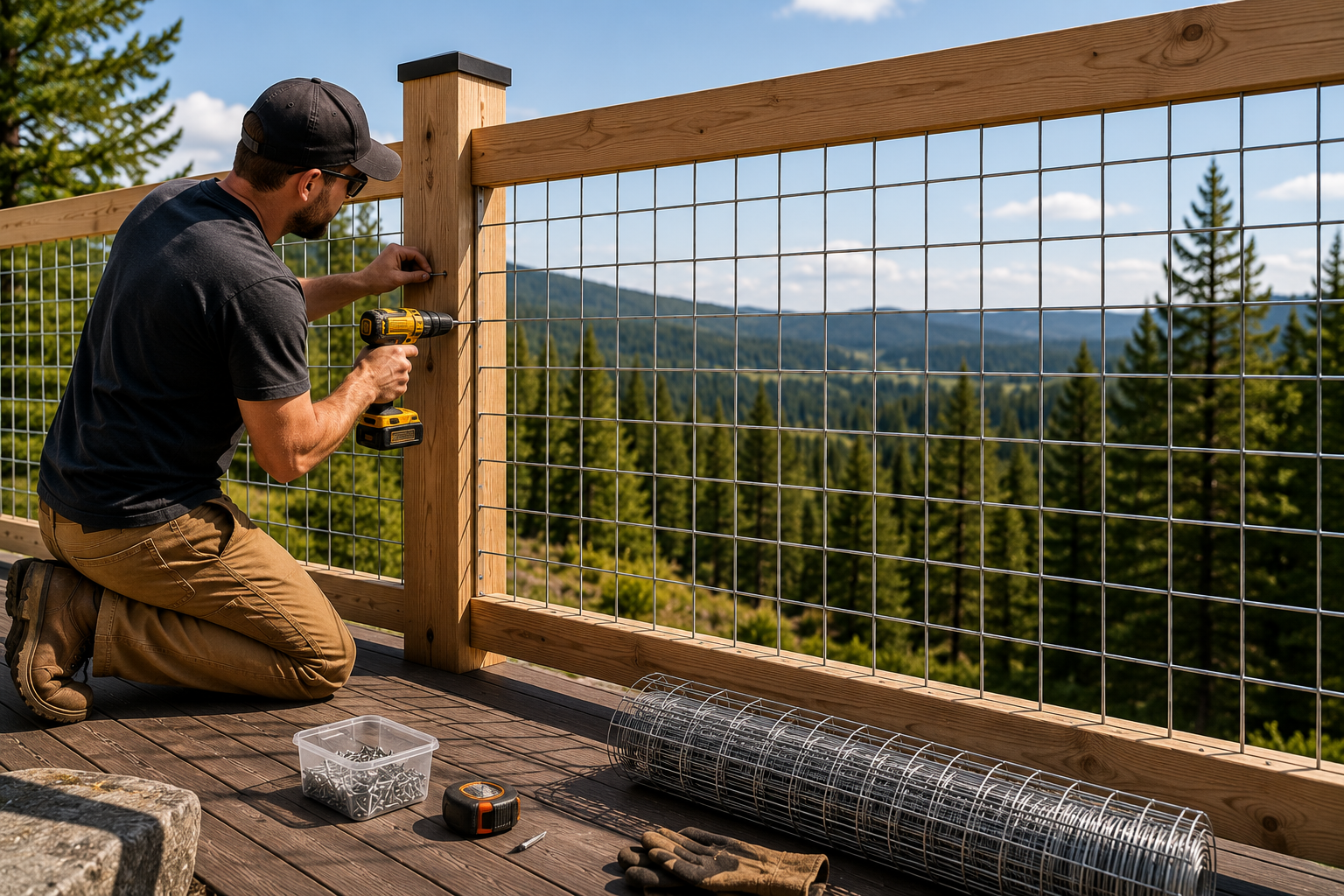

6. Hang panels. Start at a corner post. Attach with your chosen fastener (clips, U-bolts, or staples) starting at the top and working down. Keep tension consistent.
7. Trim and finish. Cut any excess wire with bolt cutters. Cap steel posts with post caps to keep water out. Apply a bead of exterior caulk where wood meets metal if you're using a hybrid frame.
8. Install gates. Hang gate hardware last, after the fence line is fully tensioned. This prevents misalignment.

Browse the full range of hog wire fence panels before you finalize your layout, since panel dimensions drive your post spacing.

7. Why Panel Quality Decides Everything

Here's the uncomfortable truth: you can nail the posts, the concrete, and the fasteners, and your fence will still fail if the panels are junk. The weak link in any welded wire mesh panel is literally the welds.

BarrierBoss panels are built the other way around. Our 6-gauge wire is welded first, then Class 3 heavy galvanized (150 gsm zinc) after welding, then dip-coated. The welds get the same zinc mass as the straight wire. No bare steel. No hidden weak points. It's the difference between a fence that survives 5 winters and one that survives 40.

Unlike thin 11-gauge or 14-gauge wire that bends under load and sags between posts, our 6-gauge dip-coated panels hold their shape. You can space posts at a full 2,400 mm (8 ft) without worrying about mid-span deflection. That means fewer posts, fewer holes, and less concrete, savings that offset the premium panel cost.
