Shopping for Hog Wire Fence Panels: What You Have, What You Need, and What Actually Lasts
Four Checks Before You Build: Sorting Fence-Grade Panels From Firewood
You've got hog wire panels sitting in your yard, stacked in your garage, or bookmarked in six browser tabs. Maybe you inherited them with a property. Maybe you bought a batch from a farm supply store and now you're wondering if they're actually fence-grade. Either way, you're shopping, and you need to know what separates panels that last from panels that rust at the welds inside five years.
TL;DR
- Not all hog wire is fence-grade. Agricultural panels are built for containment, not for aesthetics or longevity in a residential setting.
- The single biggest durability factor is galvanizing sequence. Panels galvanized AFTER welding protect every weld intersection; pre-galvanized wire leaves hundreds of bare-steel points exposed.
- Wire gauge matters more than you think. 6-gauge holds its shape for decades; thin 11 or 14-gauge bends, dents, and sags under normal use.
- A dip-coated finish outperforms dip-coated alternatives outdoors, especially through Canada's freeze-thaw cycles.
- BarrierBoss panels carry a 40-year warranty, roughly two and a half times the coverage of leading competitors.
- Panels come in eight sizes and four mesh openings, so match the panel to your post spacing rather than cutting one down.
This guide walks you through evaluating the hog wire panels you already have, understanding what specs actually matter when buying new ones, and making a decision you won't have to redo in five years.

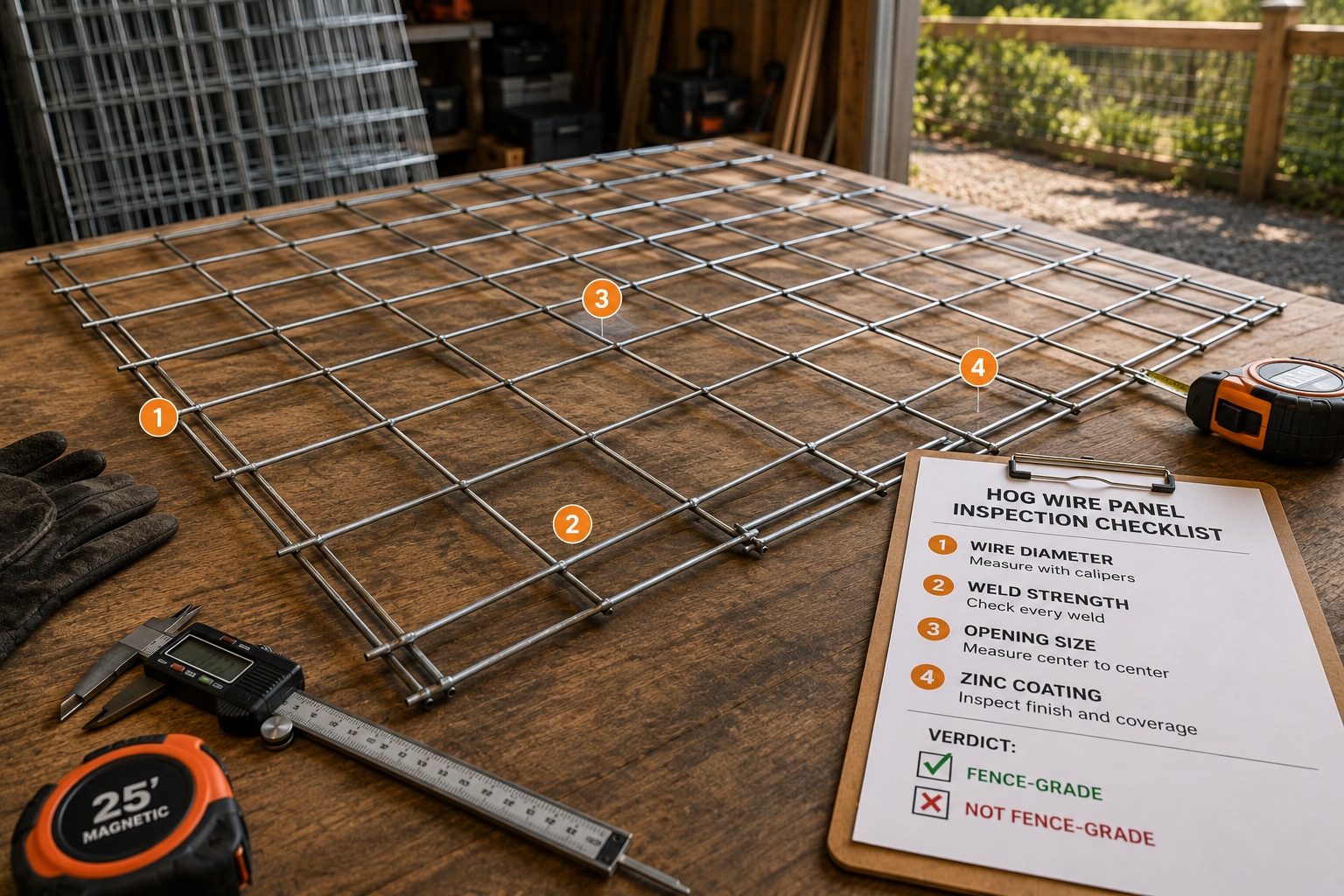

Assess the Panels You Already Have
Before you spend another dollar, take an honest look at what's already in your possession. Grab a panel, flip it over, and check these four things.
1. Check the Weld Intersections
Run your thumb across five or six weld points where horizontal and vertical wires cross. Feel any roughness, flaking, or orange-brown discolouration? That's rust forming at the welds, the telltale sign of pre-galvanized wire. When wire is galvanized before welding, the welding heat burns the zinc off every intersection, leaving hundreds of bare-steel contact points that corrode first.
Rust at the welds but nowhere else: pre-galvanized. These panels are on a clock.2. Measure the Wire
Use a calliper or even a drill bit gauge. 6-gauge wire measures about 5.5 mm in diameter. If your wire is noticeably thinner, closer to 3.76 mm (9-gauge), 3.0 mm (11-gauge), or 2.0 mm (14-gauge), you're looking at agricultural or lightweight decorative panels that won't hold up as residential fencing.
Under about 4 mm: not structural fencing wire, whatever the listing called it.3. Look at the Coating
Is the surface matte and uniform, or does it have a glossy, plasticky shell that's already chipping at stress points? dip-coateds look great in the store but can crack and peel through freeze-thaw cycles, letting moisture underneath where you can't see it. A dip-coated finish bonds more thoroughly and handles thermal expansion without splitting.
Chipping or flaking at stress points: the coating has already failed, and corrosion is running underneath it.4. Check the Grid and Dimensions
Farm-store hog panels traditionally use a graduated grid, tighter at the bottom to hold piglets, wider at the top, in one awkward 16-foot length. Purpose-built fencing panels use a uniform grid in residential sizes that match standard post spacing. If your panels are 16 feet long with graduated spacing, they were built for a barnyard, and they'll look like it on a property line.
Uniform grid in a residential size: built for fencing, which is what you want.The Specs That Actually Matter
Shopping for hog wire panels means wading through product listings that emphasize the wrong things. Here's what to prioritize, ranked by long-term impact:
- Galvanizing sequence, after welding rather than before (more below)
- Wire gauge, 6-gauge for structural and residential fencing
- Finish type, dip-coated for weather resistance
- Mesh opening, sized to what you're containing
- Warranty length, since anything under 25 years signals the manufacturer doesn't trust their own product
- Panel dimensions, matched to your post spacing and desired fence height
Notice what's not on this list: price per panel in isolation. A cheap panel that rusts at the welds in four years is more expensive than a good one that lasts forty. Do the math per decade, not per trip to the store.
Galvanized After Welding: Why It's Non-Negotiable
This is the single most important thing to understand when shopping for hog wire panels, and most product listings don't mention it at all.
Pre-galvanized wire (the industry default): individual wires are coated with zinc, then welded together into panels. The welding torch heats each intersection far past the point where zinc vaporizes, burning the coating off at every single weld. The result is a panel with a thin zinc surface everywhere except the hundreds of spots where wires actually connect, which are now exposed bare steel. Those welds rust first. Always.
Galvanized after welding (what BarrierBoss does): wires are welded into panels first. Then the entire assembled panel is hot-dipped and heavy galvanized, so every weld, every intersection, every millimetre of wire gets the same zinc protection. Then the panel receives its dip-coated colour finish on top.
The chemistry is simple: zinc sacrificially protects steel. Where there's no zinc, there's no protection. Pre-galvanized panels have no zinc at the welds. That's not a quality tier, it's a structural vulnerability built into the product.
BarrierBoss backs this process with a 40-year warranty on all panels. Most competitors using pre-galvanized wire top out at 15 years. That warranty gap tells you which process the manufacturers themselves trust.
Wire Gauge: Not Marketing, Physics
Wire gauge in North America uses an inverted scale: lower numbers mean thicker, stronger wire. This trips people up constantly.
- 6-gauge, about 5.5 mm diameter. Heavy, structural-grade wire. Resists impact, holds its shape under load, doesn't sag between posts. This is what BarrierBoss uses.
- 9-gauge, about 3.76 mm. Common in agricultural panels. Adequate for livestock containment but noticeably less rigid for fencing.
- 11-gauge, about 3.0 mm. Thin enough to flex under hand pressure. Bends and dents easily. Common in budget residential panels.
- 14-gauge, about 2.0 mm. Decorative at best. Dents under load, sags between posts, and has far less metal to sacrifice before the steel is compromised.
When you're shopping, don't just look for "heavy-duty" in the description, look for the actual gauge number. Unlike thin 14 or 11-gauge wire that bends under a stiff wind or a dog's shoulder, 6-gauge holds its shape for decades. It's the difference between a fence and a suggestion.
Finish Types: Dip-Coated vs. dip-coated
BarrierBoss panels use a dip-coated finish applied over the galvanized base. Here's why that matters in a Canadian context:
- Freeze-thaw cycles: Canada sees dozens of freeze-thaw transitions per winter across most provinces. Rigid coatings like dip-coated can micro-crack during thermal expansion and contraction. Once moisture gets under the coating, corrosion accelerates invisibly. A dip-coat flexes with the metal.
- Coverage: dip-coating is applied electrostatically and follows line of sight, so it leaves thin spots in the tight crevices where wires weld together. Dip coating immerses the whole panel, reaching everywhere.
- UV exposure: dip-coated finishes hold their colour in direct sun without the chalking and fading common in thinner applied finishes.
- Salt and moisture: coastal BC, the Atlantic provinces, and any road-salt-adjacent property test coatings aggressively. Dip-coat over heavy galvanizing creates a dual-barrier system.
Panel Comparison: What You Might Have vs. What You Should Buy
| Spec | Typical Farm-Supply Panel | Big-Box Residential Panel | BarrierBoss 6-Gauge Dip-Coated |
|---|---|---|---|
| Wire Gauge | 9-gauge | 11 or 14-gauge | 6-gauge (5.5 mm) |
| Galvanizing | Pre-galvanized (before welding) | Pre-galvanized or electro-galvanized | Hot-dipped, heavy galvanized AFTER welding |
| Weld Protection | Zinc burned off at welds | Zinc burned off at welds | Full coverage including every weld |
| Finish | Raw galvanized, no colour coat | dip-coated | Dip-coated over galvanized base |
| Mesh Options | Whatever the pallet came with | One or two | 1x1, 2x2, 2x6, 4x4 inches |
| Warranty | 1 to 5 years, if any | 10 to 15 years | 40 years |
| Typical Lifespan | 8 to 15 years before weld rust | 10 to 20 years before coating failure | 40-plus years |
What to Look for When Shopping New
Whether you're replacing what you have or starting fresh, here's the checklist:
- Ask about galvanizing sequence. If the listing doesn't specify "galvanized after welding," assume it's pre-galvanized. Manufacturers who do it right always say so, because it costs more and they want you to know.
- Demand the gauge number. "Heavy-duty" and "commercial-grade" are marketing terms with no standardized definition. The gauge number is the gauge number.
- Pick your mesh deliberately. Openings run 1x1, 2x2, 2x6, and 4x4 inches. Small pets, poultry, and garden protection want 1x1 or 2x2; property lines, livestock, and railings want 4x4. Sizing it right up front beats adding a secondary barrier later.
- Match the panel to your post spacing. Panels come in eight sizes from 3x6 to 8x8 feet. Buy the size that fits your bay rather than cutting one down, since cutting the steel exposes bare edges and voids the coating warranty on the cut section.
- Read the warranty document, not the marketing page. A 40-year warranty covering the wire and finish is categorically different from a 15-year warranty with exclusions for "normal weathering."
- Factor in delivery. A great price on panels means nothing if they arrive damaged on a third-party truck with no freight insurance and nobody to help unload.
Delivery: The Part Nobody Talks About Until It Goes Wrong
Metal fence panels are heavy, awkward, and ship freight-class. How they get to your property matters as much as what's in the box.
Most online panel sellers use third-party LTL carriers. Your panels ride on a shared trailer with other freight, transfer between terminals, and arrive at your curb on a lift gate. The driver drops them and you figure out the rest. If anything is damaged, and terminal transfers are where damage happens, you file a claim with the carrier rather than the seller.
BarrierBoss works differently. We deliver on our own trucks with our own crew across British Columbia and Alberta, with crew unloading included on every order and the heavier framed panels set down by our own crane truck rather than dropped at the curb. Flat-rate delivery, freight insured end to end, and free pickup at our West Kelowna facility if you'd rather collect them yourself. The rest of Canada is paused for new orders while we're at capacity, with service expanding as our Ontario fulfillment hub opens.
Frequently Asked Questions
Can I Reuse the Hog Wire Panels I Already Have?
You can, but inspect them honestly first. If the welds show rust, the panel's integrity is already compromised and will only deteriorate. Pre-galvanized panels with weld rust aren't worth building a new frame around, since you'll be replacing them within a few years anyway. If they're in genuinely good condition, no weld rust, no bending, no coating failure, they may serve for a secondary use like a garden trellis or compost enclosure.
Do I Need a Permit to Install a Hog Wire Fence in Canada?
Permit requirements vary by municipality and province. Most residential fence installations under a certain height don't require a building permit, but setback requirements, height limits, and material restrictions differ across jurisdictions. If your fence acts as a guard on a deck or balcony, it must comply with the National Building Code of Canada and your provincial code for guard height and opening sizes. Always confirm with your local municipal building authority before starting.
How Does 6-Gauge Compare to Standard Cattle Panel Wire?
Standard cattle panels from farm supply stores typically use 9-gauge wire with pre-galvanized construction. At 5.5 mm versus 3.76 mm, 6-gauge is substantially thicker in diameter and carries roughly twice the cross-sectional area, which is where the rigidity difference comes from. Combined with heavy galvanizing applied after welding and a dip-coated finish, it's built for permanent fencing rather than temporary livestock management.
What's the Real Cost Difference Between Cheap and Premium Panels?
Budget 11-gauge pre-galvanized panels typically run $30 to $60 CAD depending on size and source. Premium 6-gauge galvanized-after-welding dip-coated panels start at $49.99 CAD and scale with size and mesh, carrying a 40-year warranty against 10 to 15. When you divide total cost by expected lifespan, the premium panel often costs less per year, before you count the labour of ripping out and replacing failed budget panels.
Do the Panels Come in Finishes Other Than Black?
Yes. Black is the most popular by a wide margin and the most practical for hiding dust between rinses, but silver, brown, and corten rust patina are all available in the same 6-gauge dip-coated construction with the same warranty. Pick the finish for your setting; the performance doesn't change.
Your Next Step
If the panels you have don't pass the weld-rust test, the gauge test, or the "would I bet forty years on this" test, it's time to upgrade. Every BarrierBoss panel is 6-gauge, hot-dipped and heavy galvanized after welding, dip-coated, and backed for 40 years, with factory-direct pricing and delivery plus crew unloading across BC and Alberta.
