Cattle Panel Fence Gates

Name: Cattle Panel Fence Gates
Brand: BarrierBoss
SKU: CPGRCP-4x4-44MAG-PT-BK
Price: 274.99 CAD
Availability: InStock

$ 274.99

Sale

Shipping calculated at checkout.

Available We Unload Freight Insured Free Returns Warranty

Quantity must be 1 or more

SKU: CPGRCP-4x4-44MAG-PT-BK

BarrierBoss

Description

Rigid cattle panel gates – pre-framed 6-gauge hot-dipped heavy-galvanized steel mesh with your choice of Black, Brown or Green dip-coat, raw galvanized Silver, or natural rust/patina finish.
Widths: 4' to 12' | Heights: 4' to 8'.
Mesh openings: 1"x1", 2"x2", 2"x6", 4"x4" (we automatically match to your panels, or specify different in order notes).
Frame with Western Red Cedar or KDBT lumber for a strong, clean look. Ideal for farms, ranches, driveways, livestock pens and acreage access.

Specifications

MEASUREMENTS

Available Sizes (Height x Width):
4ft x 4ft
5ft x 4ft
6ft x 4ft
7ft x 4ft
8ft x 4ft
4ft x 12ft
5ft x 12ft
6ft x 12ft
7ft x 12ft
8ft x 12ft
Framing Options:
Western Red Cedar
KDBT (Kiln Dried Before Treatment) Lumber

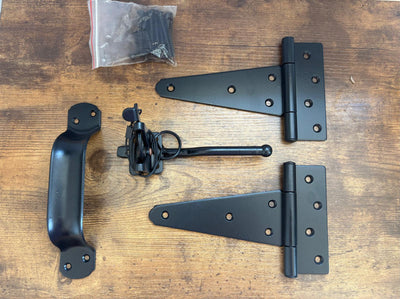

Hardware:
All latching and hardware components feature a black dip-coated finish for added durability and sleek aesthetics.
Class 3 Heavy Galvanized AFTER Welding — Competitors Pre-Galvanize, Leaving Every Weld Burned Bare

WARRANTY

STEEL & WIRE — BarrierBoss 40-Year Warranty on the core wire and finish. Dual-layer protection: Class 3 heavy-galvanized zinc applied AFTER welding (150 gsm — the heaviest standard class; competitors electro-galvanize with a fraction of the zinc) + heavy-duty fluidized dip-coat on top
CORTEN OPTIONS — Bare weathering steel; the natural rust patina is intentional and protective (no coating warranty applies)
TREATED LUMBER FRAME — Kiln-Dried, Copper-Azole Pressure-Treated; Lifetime Limited Warranty against structural failure from fungal decay or termite damage — ground-contact and above-ground retention classes, when installed per applicable building codes. Field cuts must be sealed with two coats of a copper-based end-cut preservative (min. 1% copper) to maintain coverage
WESTERN RED CEDAR FRAME — Kiln-Dried; naturally decay- and insect-resistant; 10-Year Limited Warranty against manufacturing defects and premature structural decay
FACTORY ASSEMBLY — 5-Year Limited Workmanship Warranty
CARE — We recommend maintaining exposed wood with Stain & Seal Experts oil-based penetrating stain (available from BarrierBoss) to extend its life and keep the finish looking new
INSTALLATION — Proper installation is the installer's responsibility: correct concrete mix, post-hole diameter and depth for your soil and frost line, and panels set square, plumb and level. Damage or premature wear from improper installation is not covered
MODIFICATIONS — Cutting, drilling or altering the steel exposes unprotected edges and voids the steel & coating warranty on the modified component. Need a custom size? We cut to order — ask us before you cut
Natural weathering, checking and minor warping of wood are normal characteristics — not defects

Description

Cattle Panel Fence Gates | 5 Colours, All Sizes | BarrierBoss Canada

Why Choose BarrierBoss Rigid Cattle Panel Gates

These pre-framed, welded 6-gauge hot-dipped heavy-galvanized steel gates deliver maximum containment and clean sightlines for Canadian farms, ranches, driveways and acreage. Available in Black, Brown or Green dip-coat, raw galvanized Silver, or natural rust/patina finish. We automatically match the gate mesh to your panels (or specify a different size in the order notes). Steel and wood posts sold separately.

Pro Tip:

We automatically match the gate mesh size to whatever mesh you’ve ordered for your panels (so everything lines up perfectly). If you want a different mesh size on the gates (or are ordering gates individually), just let us know your preference in the order notes. Available mesh sizes: 1"x1", 2"x2", 2"x6", 4"x4".

Strong Gates That Handle Real Canadian Conditions

BarrierBoss rigid cattle panel gates are hand-assembled from 6-gauge hot-dipped heavy-galvanized steel mesh, offering exceptional strength for frequent use by livestock, vehicles or equipment. The mesh is available in five finishes: fluidized dip-coated Black, Brown or Green; raw galvanized Silver; or natural rust/patina (uncoated weathering steel). The open grid keeps visibility clear while providing secure closure for pens, paddocks, driveways or property access points.

Mesh options range from 1"x1" for tight containment (goats, sheep, pets) to 4"x4" for larger animals with better airflow and sightlines. Gates come in widths from 4' to 12' and heights from 4' to 8', making them adaptable for everything from small garden entries to wide ranch driveways. Custom sizes available on request.

Choose your frame: Western Red Cedar for warm, natural rot resistance and classic rural appeal, or KDBT pressure-treated lumber for maximum structural stability and a smooth finish ready for staining.

Installation is straightforward — mount to standard posts (sold separately) and you’re set. The heavy 6-gauge mesh stands up to pushing livestock, wind, snow load and seasonal shifts with minimal wear, so you get years of reliable performance without constant adjustments or repairs.

Did You Know?

Each BarrierBoss rigid cattle gate is hand-welded and assembled with care in North America, combining heavy-duty materials with precise craftsmanship so every gate feels solid and operates smoothly right out of the box.

Features & Benefits

6-gauge hot-dipped heavy-galvanized welded steel mesh for superior strength
Five finish options: Black, Brown, Green (fluidized dip-coat), Silver (raw galvanized), Rust/Patina (natural weathering steel)
Customizable mesh sizes for pets, small livestock or large cattle
Western Red Cedar or KDBT lumber frames for durability and aesthetics
Pre-framed and ready to hang for fast, clean installation
Clear sightlines with reliable containment for farms, driveways and paddocks
Built to withstand Canadian weather with minimal upkeep

Key Takeaways

6-gauge welded gates offer maximum security and clean visibility
Custom mesh and frame options fit any farm or acreage need
Ready-to-install design saves time on ranches, driveways and paddocks

Deep Dive Into Cattle Panel Gates

Rigid Hog Wire Gates: Unmatched Security Meets Modern Farmhouse Style

Shop the Look

Why Choose BarrierBoss?

4"×4" mesh
40-year warranty

Technical Specifications

Wire gauge by mesh size Our 2″ × 2″ and 4″ × 4″ mesh panels are built from 6-gauge (4.88 mm) hot-dipped galvanized steel. Our 1″ × 1″ mesh panels are built from 10-gauge wire (~3 mm bare, ~4 mm after dip-coating) — the heaviest wire commonly produced in a 1″ opening (industry standard for 1″ × 1″ is 12-gauge, so our 10-gauge runs heavier than the market). 6-gauge isn’t manufactured in 1″ × 1″ grids anywhere in the industry — a 6′ × 8′ panel at that weight would run 55–60 kg, outside practical fencing range.

Wire Gauge	6-gauge (4.88mm) heavy-duty welded steel
Finish	Hot-dip galvanized + fluidized dip-coat
Mesh Pattern	Graduated rectangular openings (cattle panel standard)
Sizes	3'x6' to 8'x8'
Color	Midnight Black
Frame Options	Unframed, Pressure Treated, or Western Red Cedar
Warranty	40-year warranty
Brand	BarrierBoss

Galvanized After Welding — Why Our Welds Don't Rust

Every BarrierBoss panel is Class 3 heavy galvanized — 150 gsm of zinc, the heaviest standard wire galvanizing class — applied AFTER welding, then sealed in our heavy-duty dip-coat. Welds are the natural weak point of any welded panel: typical competitor panels are welded from pre-galvanized wire, which burns the zinc off every wire intersection and leaves hundreds of bare-steel points hiding under a thin powder coat. That's where they rust first. Our zinc goes on after the welds are made, so the entire panel — welds included — carries full protection. It's the reason we back the wire and finish for 40 years, nearly three times the coverage of leading hog wire competitors.
