Hog Wire Fence Kit: Shop the Look and Actually Make It Last
Everyone Can Find the Hog Wire Look on Pinterest. Here Is How to Build It So It Actually Lasts.
Clean horizontal lines. Industrial-meets-modern wire panels framed in wood or metal. The hog wire aesthetic that says "I planned this" without screaming "I spent a fortune." Here is everything you need to know about putting together the right kit and making it hold its look for decades.
TL;DR
- A hog wire fence kit combines wire panels, posts, and framing into a single cohesive look. The panel quality determines whether it still looks new in 5 years or 25.
- Wire gauge and galvanizing method are the two specs that separate a lasting fence from a rusting one. Look for 6-gauge wire with an electrogalvanized base applied after welding, plus a dip-coated finish.
- Pre-galvanized panels (the industry default) burn off zinc at every weld intersection during manufacturing, leaving hundreds of bare-steel failure points from day one.
- BarrierBoss hog wire panels carry a 40-year warranty at factory-direct pricing. Leading competitors warrant just 15 years on thinner wire.
- BarrierDirect delivers to your curb with our own trucks and crew and actually unloads the freight. No third-party LTL, no terminal transfers, no panels left on a pallet in your driveway.
- Pair hog wire with corrugated metal fence panels for a mixed-material privacy and openness look that is trending hard in Canadian residential design. Browse the full hog wire collection to find the right panels for your kit.
What Is a Hog Wire Fence Kit?
A hog wire fence kit is a welded wire panel system designed to be mounted inside a structural frame, typically wood posts and rails, steel tubing, or a combination of both. The kit concept means you are shopping for components that work together visually and structurally: the wire panels themselves, the posts, top and bottom rails, brackets or clips, and sometimes post caps or trim pieces.
The term "hog wire" comes from agricultural roots (livestock containment), but the modern residential version has evolved into something entirely different. Today's hog wire fence kits are specified for deck railings, property perimeters, garden enclosures, and privacy screens across Canada, from West Coast contemporary builds to Prairie-modern farmhouse projects.
The catch: most people spend 80 percent of their research time on the frame (cedar vs. pressure-treated vs. steel) and about 5 minutes picking the wire panel. That is backwards. The panel is the largest visual surface of your fence. It is what people see. And it is where the quality gap between products is widest.
The 2026 Aesthetic: What Shop the Look Actually Means
The hog wire fence look is driven by a few core design principles that keep showing up in Canadian residential projects. Browse the hog wire fence panels collection to see how the different finishes and configurations change the aesthetic entirely.
- Clean geometry. Rectangular grid patterns (typically 150mm x 100mm openings) that read as architectural, not agricultural.
- Contrasting materials. Dark-stained cedar frames with black dip-coated wire. Raw steel posts with galvanized panels. The tension between organic and industrial is the whole point.
- Transparency. Unlike solid wood or vinyl, hog wire lets light and sightlines through. It works in small yards where a solid fence would feel claustrophobic, and on elevated decks where you want to preserve the view.
- Mixed panels. One of the strongest current trends: alternating hog wire sections with solid corrugated metal fence panels in 26-gauge HDP steel with HDP NoFade paint. You get privacy where you need it and openness where you do not.
The look is easy to find on social media. The challenge is sourcing panels that hold that look for more than a few seasons.
The Specs That Actually Matter
Two specifications separate panels that stay looking new from panels that show rust stains within 3 to 5 years. Here is what to look for, and what most retailers never tell you.
Wire Gauge
Wire gauge works on an inverse scale: lower number means thicker, stronger wire. This trips people up constantly.
- 6-gauge (BarrierBoss standard): Roughly 4.9 mm diameter. Holds its shape under impact, will not dent from a kicked ball or a leaning dog, and carries real structural rigidity within the frame.
- 11-gauge: Roughly 3.0 mm diameter. Noticeably thinner. Common in budget big-box panels. Easier to bend by hand, which also means easier to dent and deform over time.
- 14-gauge: Roughly 1.6 mm diameter. Fine for a tomato cage. Not what you want as a permanent fence panel.
Unlike thin 14-gauge or 11-gauge wire that bends and dents under everyday use, 6-gauge holds its shape for decades. Wire gauge is what protects your investment physically.
Finish
BarrierBoss panels are dip-coated. The dip-coating process applies a uniform protective layer across every surface, including inside corners and weld intersections that spray-applied finishes routinely miss. The result is consistent coverage and consistent colour that weathers evenly across the entire panel.
Why Electrogalvanized After Welding Changes Everything
This is the single most important quality differentiator in welded wire panels, and almost nobody talks about it.
Every welded wire panel has dozens, sometimes hundreds, of weld intersections where two wires cross and are fused together with heat. Those welds are structurally critical. They are also the natural weak point for corrosion.
The Pre-Galvanized Problem
Most hog wire panels on the market use pre-galvanized wire. The zinc coating is applied to the raw wire before the panel is welded. When the welder hits those intersection points at extreme temperatures, it burns the zinc off the weld area. The result: hundreds of bare-steel points scattered across your brand-new panel, each one a future rust spot. The remaining zinc layer over the rest of the wire is often thin surface zinc, just enough to look shiny on the shelf.
The BarrierBoss Approach
BarrierBoss hog wire panels are electrogalvanized after welding. The panel is welded first, then the entire assembly, including every weld and intersection, receives its zinc protection. Then the panel is dip-coated for UV and abrasion resistance on top of that. No bare-steel failure points. No early rust blooms. That is why BarrierBoss backs these panels with a 40-year warranty while leading competitors max out at 15 years on thinner, pre-galvanized wire.
Browse the full lineup of 6-gauge dip-coated panels in the hog wire fence panels collection.
Cost Comparison: Panels Only, 15 Metre Run (CAD)
| Panel Type | Wire Gauge | Galvanizing Method | Finish | Warranty | Est. Panel Cost (15m run) |
|---|---|---|---|---|---|
| Big-box pre-galvanized | 11-gauge | Pre-galvanized (zinc burned at welds) | Varies | 1 to 5 years | $300 to $500 |
| Mid-range residential | 9 to 11-gauge | Pre-galvanized | Dip-coated | 10 to 15 years | $500 to $900 |
| BarrierBoss 6-gauge | 6-gauge | Electrogalvanized AFTER welding | Dip-coated | 40 years | $700 to $1,100 |
The upfront gap between a budget panel and a BarrierBoss panel narrows fast when you factor in replacement cycles. A pre-galvanized 11-gauge panel showing weld rust in year 4 to 6 means you are re-panelling long before a 6-gauge dip-coated panel even starts to show its age. Factory-direct pricing with no distributor markup keeps BarrierBoss panels competitive with the mid-range category, but with significantly more zinc mass and nearly three times the warranty.
Design Ideas: Wood Frame, Metal Frame, and Hybrid
Western Red Cedar + Black Dip-Coated Hog Wire
The classic West Coast look. Use 100mm x 100mm (4x4) cedar posts with 50mm x 150mm (2x6) top and bottom rails routed with a channel for the panel to sit in. The warm wood tone against black wire is the most-photographed hog wire combination in Canada. Expect the cedar frame to need re-staining every 2 to 3 years. The panel behind it will not need anything.
Steel Tube Frame + Galvanized Wire
For a fully industrial look, use 50mm x 50mm (2x2) steel tube frames with the hog wire panel mounted inside. Finish the frame with a matte black paint or leave it raw for a Corten-adjacent patina. The 6-gauge panel's rigidity makes this easier: it sits flat in the frame without bowing or needing intermediate supports.
Hybrid: Hog Wire + Corrugated Metal
Alternate sections of hog wire and corrugated metal fence panels (26-gauge HDP steel, HDP NoFade paint) within the same fence line. Use corrugated sections where you need privacy or wind screening, and hog wire sections where you want airflow and visibility. Same post spacing, unified aesthetic, two functional zones.
Installation: DIY vs. Pro
Hog wire fence kits are genuinely DIY-friendly if you are comfortable with post-setting and basic carpentry or metalwork.
- Deck railings and guards: The National Building Code of Canada (NBC) and provincial codes set specific requirements for guard height, opening sizes, and structural loading. These vary by province and municipality. Always confirm the exact requirements with your local building authority before purchasing or installing.
- Panel trimming: 6-gauge wire requires a bolt cutter or angle grinder with a cut-off wheel. Do not try tin snips.
- Tensioning: Because 6-gauge wire holds its shape, you do not need the aggressive tensioning systems that thinner-gauge panels require. Mount the panel, fasten it at the corners and midpoints, and you are done.
- Permits: Many Canadian municipalities require permits for fences above a certain height, and almost all require permits for deck railings. Check with your local building department before you start digging post holes.
If you would rather hand it off, our hog wire collection page has contact details to connect with local installers who know the product and local code requirements.
Getting Panels to Your Property
A 6-gauge welded wire panel is heavy, rigid, and awkward to handle. How it arrives at your property matters.
BarrierDirect Curbside Delivery and Unload is built specifically for this. We deliver with our own trucks and crew across Canada: no third-party LTL carriers, no terminal transfers, and no curb-drop-and-leave. Our crew brings the panels to your curb and unloads them. Every order includes complimentary freight insurance. Compare that to the standard third-party LTL experience: panels through 2 to 3 terminals, arriving on a truck that drops a pallet at the end of your driveway, and you moving 180-plus kg of steel panels from there on your own.
Frequently Asked Questions
Can I Use Hog Wire Panels for a Deck Railing in Canada?
Yes, hog wire panels are widely used for deck railings across Canada. However, the NBC and provincial codes set specific requirements for guard height, opening sizes, and structural loading that vary by province and municipality. Always confirm the exact requirements with your local building authority before purchasing or installing. The 6-gauge wire thickness of BarrierBoss panels gives you structural performance that thinner panels cannot match in railing applications.
How Long Will a Hog Wire Fence Keep Looking New?
That depends entirely on the panel. Pre-galvanized panels with thin-gauge wire commonly show visible rust at weld intersections within 3 to 6 years. BarrierBoss 6-gauge panels, electrogalvanized after welding then dip-coated, are backed by a 40-year warranty. The look stays consistent because the finish weathers evenly, without the spotty rust blooms caused by bare-steel weld points.
What Is Included in a Typical Hog Wire Fence Kit?
Most kits include wire panels and basic mounting hardware. Posts and rails are usually sourced separately because material preferences (cedar, pressure-treated, steel) vary by project. BarrierBoss sells the panels and finish hardware through the hog wire fence panels collection. The Zero-Maintenance Hog Wire Fence Kit includes panels plus everything needed for a complete installation.
Is Hog Wire Fencing Less Expensive Than Solid Metal Fencing?
Generally yes. Hog wire uses less material per linear metre than solid corrugated or flat-panel metal fencing, so the panel cost is lower. However, hog wire requires a structural frame that solid panel systems sometimes include. For projects that need both privacy and openness, a hybrid approach using hog wire plus corrugated metal fence panels often hits the best balance of cost and function.
Do I Need a Permit to Install a Hog Wire Fence in Canada?
Permit requirements vary by municipality. Many Canadian cities require a permit for fences above a certain height, and almost all require permits for deck railings, which are classified as guards under provincial building codes. Check with your local building department before you start digging post holes.
Ready to Shop the Look?
The hog wire aesthetic is not going anywhere. It has been steadily climbing in residential projects across Canada because it works: visually, functionally, and financially. The only question is whether you build it with panels that hold that look for 5 years or 40. Start with the panel. Get that right and the rest of the project falls into place.
Browse Hog Wire Panels → Shop the Zero-Maintenance Fence Kit →
Shop These Products
Black Hog Wire Fence Panels
6-gauge electrogalvanized wire with dip-coated finish. Framed or unframed. Available in multiple mesh sizes for fencing and deck railing applications. 40-year warranty.
From $49.99 CAD

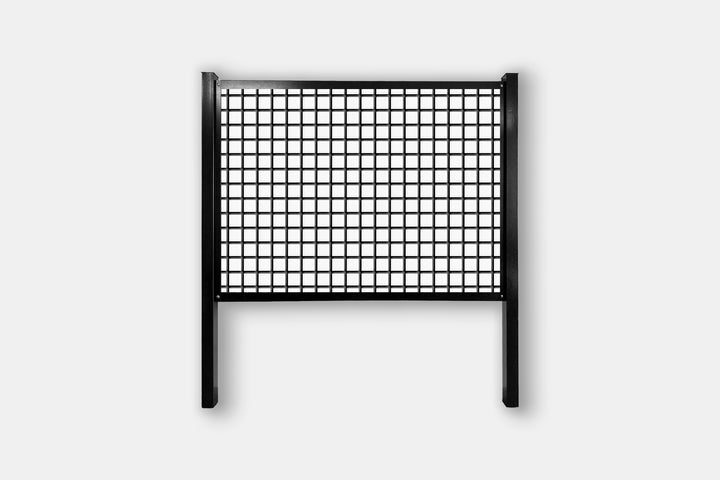

Zero-Maintenance Hog Wire Fence Kit
