Steel Board Fencing System - Ranch and Farm Fencing - The Highland (Price per linear foot) - BarrierBoss™

Steel Board Fencing

$ 35.99 CAD

$ 35.99 CAD ~~$ 43.20 CAD~~

Sale

Shipping calculated at checkout.

In Stock, Tariff-Free & Unloaded by Us.

Quantity must be 1 or more

Description

The BarrierBoss® Highland Steel Board Fence combines traditional ranch post-and-rail style with modern steel durability. Available in 3-rail and 4-rail configurations. Low-maintenance, no warping or rot, safe for horses & livestock. Sold by the linear foot for custom layouts — perfect for Canadian ranches, farms and equestrian properties.

Specifications

MEASUREMENTS

Highland steel board fencing – 3-rail & 4-rail.
Overall panel: ~9'2" wide (2800 mm) x ~4'9" high (1443 mm). Rail spacing: 450 mm.
Posts: ~100" long (installed height ~57"), 3-1/2" x 5-1/8".
Rails: ~114" span, 1-3/8" x 5-1/8".
Acrylic topcoat finish for protection and smooth appearance.

WARRANTY

BarrierBoss 30-year warranty on the metal.

Description

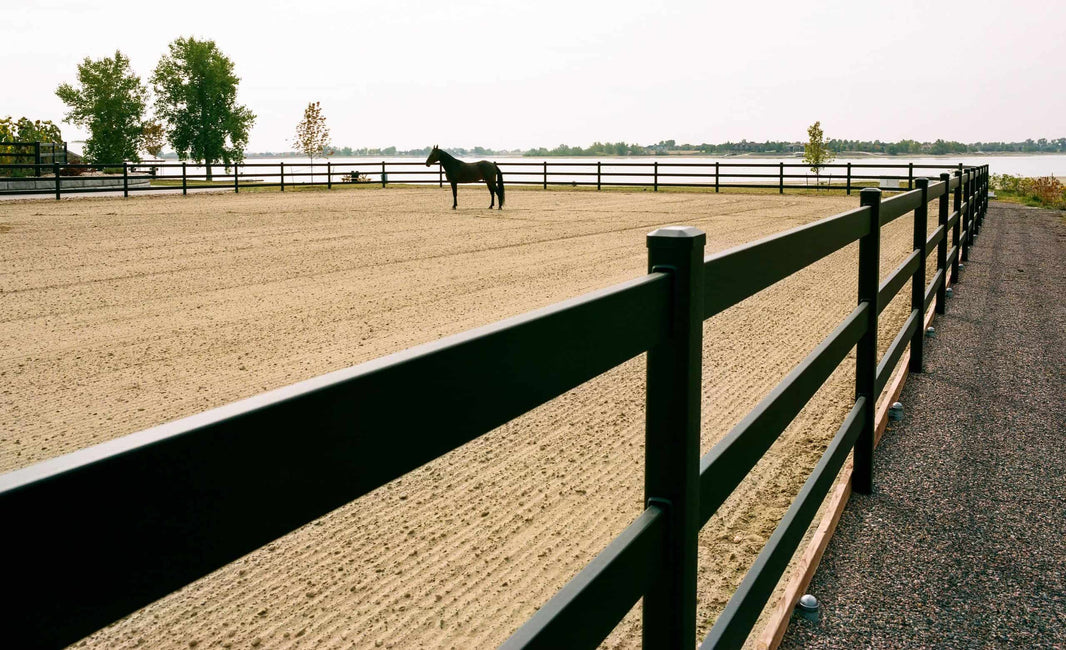

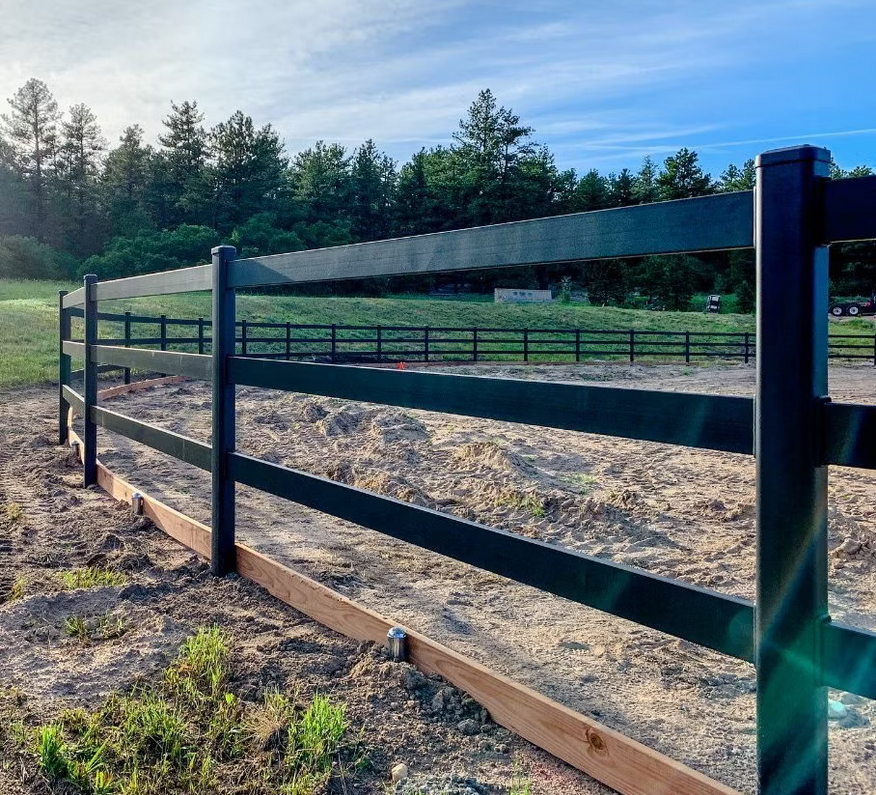

The Highland Steel Board Horse Fencing System

Why Choose The Highland Steel Board Fence

Traditional post-and-rail ranch style without the wood upkeep. The Highland steel board fencing is available in 3-rail and 4-rail configurations, built from strong steel with acrylic topcoat finish for lasting durability, no warping, no rot and safe protection for horses and livestock on Canadian farms, ranches and equestrian properties.

Pro Tip: Choose the 4-rail configuration (top rail ~54" installed height) for horse properties to prevent jumping and leaning. The 3-rail setup is ideal for cattle or perimeter runs where extra height is not critical.

Reliable Steel Board Fencing for Ranches & Farms

The Highland Steel Board Fence replicates the classic post-and-rail look you want for ranches and horse properties, but with steel that eliminates rot, warping and frequent maintenance. All posts and rails are finished with an acrylic topcoat for protection and a smooth appearance. The system is available only in two configurations: 3-rail (classic spacing for cattle or general perimeter) or 4-rail (taller and more secure for horses — top rail height ~54" installed).

Posts measure approximately 100" in length with 3-1/2" x 5-1/8" dimensions (installed height ~57"), while rails span ~114" at 1-3/8" x 5-1/8" for reinforced strength. Overall panel width (including posts) is approximately 9'2" (2800 mm), with overall panel height of 4'9" (1443 mm). Rail spacing is 450 mm between rails.

Does it hold up to livestock? Yes. The smooth steel boards resist cribbing and chewing, providing safe and secure containment for horses, cattle, and other animals. Extreme weather? The paneled steel design keeps posts straight and rails aligned, even through temperature swings, heavy winds or snow loads common across Canada.

Priced per linear foot, this system lets you order exactly what your property needs, with options for 3-rail or 4-rail configurations (top rail height ~54" installed for 4-rail).

Did You Know? BarrierBoss manufactures and finishes all Highland steel components in-house, ensuring each board and post meets high standards for strength, durability, and consistent quality across your entire fence line.

Features & Benefits

Acrylic topcoat finish for protection and smooth appearance
3-rail and 4-rail configurations — classic ranch style with modern strength
Safe for livestock — smooth boards resist cribbing and chewing
Low maintenance — no painting, sealing or rot repair needed
Paneled board design keeps posts straight and rails aligned
Sold by the linear foot for custom property layouts
Built to withstand Canadian winters, wind and heavy use

Key Takeaways

Traditional post-and-rail style with steel’s unbeatable durability
3-rail and 4-rail options — designed for ranch and horse use
No rot, no warping, no constant care
Safe and secure for horses, cattle and perimeter fencing
Long-term value with decades of reliable performance
