How Our Black Hog Wire Fence Panels Are Built and Why the Process Matters

1It Starts with 6-Gauge Wire

Wire gauge is the single biggest predictor of how a hog wire panel will look and perform five, ten, or twenty years from now. Lower gauge number means thicker, stronger steel. Our black hog wire fence panels use 6-gauge wire, roughly 5.5 mm in diameter, which is the heaviest standard specification available for welded mesh fencing.

Why does that matter at your property? Unlike thin 14-gauge or 11-gauge wire that bends under hand pressure, dents from impact, and sags between supports over time, 6-gauge wire holds its shape through decades of freeze-thaw cycles, wind loads, snow buildup, and the occasional hockey puck. It doesn't need mid-span stiffeners or extra posts to stay taut. The wire does the structural work on its own.

For context, most big-box hog wire panels you'll find across Canada use 9-gauge or even 11-gauge wire. That's not a trivial difference. A 6-gauge wire has roughly 2.6 times the cross-sectional area of a 9-gauge wire, which translates directly into stiffness and load resistance.

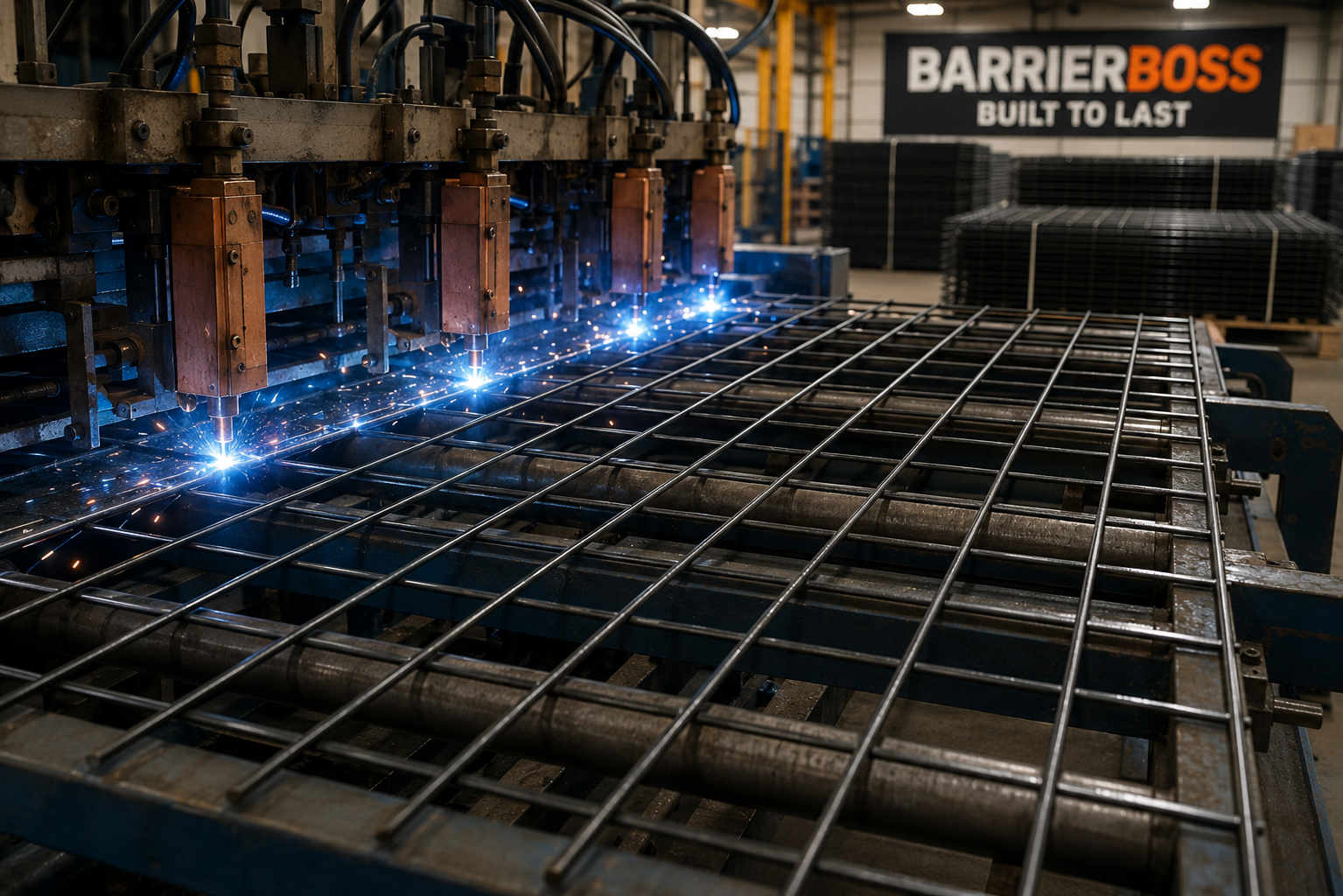

2Precision Welding: Where Most Panels Fail

Every hog wire panel is a grid of horizontal and vertical wires fused at each intersection. A standard 1,200 mm x 2,400 mm (4 ft x 8 ft) panel can have over 100 weld points. Each one of those intersections is a potential failure point, and here's where the manufacturing sequence becomes critical.

When wire is welded, the heat from the weld reaches roughly 800 to 1,500C at the junction. That temperature destroys any zinc coating that was on the wire before welding. This is basic metallurgy, and it's the dirty secret of pre-galvanized hog wire panels: the zinc gets burned off at every single weld intersection, leaving bare steel exposed under a microscopically thin re-oxidized layer.

Those bare weld points are exactly where rust starts. You've probably seen it on older farm fencing: brown bleed marks at every wire crossing while the straight runs still look fine. That's pre-galvanized wire doing what physics says it will do.

3Electrogalvanizing After Welding: The BarrierBoss Differentiator

This is the step that separates a panel built to last from a panel built to a price point. After our 6-gauge wire is welded into its final grid pattern, the entire panel is electrogalvanized with heavy zinc protection.

Because galvanizing happens after welding, the zinc coverage extends into, over, and around every weld intersection. The welds, the natural weak point of any welded mesh, get the same zinc armour as every straight run of wire. No bare spots. No heat-damaged zones. No "hope the paint covers it" approach.

Zinc corrodes preferentially instead of the steel underneath. That's the entire principle of galvanic protection. Because the coating is applied to the completed panel rather than the raw wire, our panels have zinc where competitor panels have bare steel: at the hundreds of weld intersections that determine whether the whole panel survives its second decade.

4The Black Dip-Coated Finish

Over the galvanized base, every BarrierBoss black hog wire panel receives a dip-coated finish. This is dip-coated, not dip-coated, and the distinction matters.

Dip-coating submerges the entire galvanized panel into a coating bath, ensuring full coverage of every surface, including the hard-to-reach crevices around weld intersections where dip-coateds can thin out or miss entirely. The result is a thicker, more even black finish that bonds to the zinc layer beneath and provides an additional barrier against UV degradation, moisture, and salt exposure.

The black colourway does double duty aesthetically. It recedes visually against landscaping, making the wire grid nearly disappear at typical viewing distances of 3 to 5 metres. It's the go-to choice for deck railings, garden fences, and property boundaries where you want the view, not the fence, to be the focal point.

The warranty gap alone tells the story. When a manufacturer backs its product for 40 years, it's because the chemistry and construction support that confidence. When a competitor warrants for 15, it's because they know the weld points won't hold up.

8Installation Considerations for Canadian Properties

Code Compliance

Guard rails, pool enclosures, and property-line fences may be subject to the National Building Code of Canada (NBC) and your provincial or municipal building code. Requirements for fence height, maximum opening size in mesh, and setbacks vary by jurisdiction. Always confirm specific figures with your local building authority before ordering. Provincial codes in British Columbia, Alberta, Ontario, and Quebec each have their own variations.

Post Spacing and Framing

6-gauge wire is significantly stiffer than thinner alternatives, which gives you more flexibility in post spacing. Many installers across Canada frame BarrierBoss panels in wood or steel and mount them between posts spaced at 1,800 to 2,400 mm (6 to 8 ft) on centre. The panels hold flat without sagging, even at wider spacing, thanks to the wire's inherent rigidity.

Climate Performance

Canada's climate is the ultimate stress test for fencing materials. Our electrogalvanized-after-welding process and dip-coated finish are designed for exactly this environment: road salt spray in coastal and urban settings, freeze-thaw cycling through winter, intense UV in summer, and everything in between. The 40-year warranty applies coast to coast, from Vancouver Island rain to Prairie wind to Maritime salt air.
