What Does Hog Wire Look Like? The Complete Visual Guide for 2026
You Have Seen It on Pinterest. Here Is Exactly What Hog Wire Fencing Actually Looks Like.
You have seen it on Pinterest boards, in modern farmhouse backyards, and lining restaurant patios. Here is the complete visual breakdown of hog wire fencing so you know exactly what you are looking at and what you should be buying.
TL;DR
- Hog wire is a welded grid of thick steel wire forming square or rectangular openings, typically 4x4 or 2x4 inch in residential panels.
- The modern hog wire fence look pairs these wire grid panels with wood, metal, or composite frames for a clean, contemporary aesthetic.
- Wire gauge matters more than anything for longevity and appearance. BarrierBoss panels use 6-gauge electrogalvanized wire with a dip-coated finish, far thicker and stronger than the 11-gauge or 14-gauge wire found in bargain panels.
- Hog wire looks different from chain link, welded wire mesh, and chicken wire. The grid pattern and wire thickness are the giveaways.
- All BarrierBoss hog wire panels carry a 40-year warranty and ship via BarrierDirect on our own trucks with curbside delivery and unload.
What Is Hog Wire, Exactly?
Hog wire started as a utilitarian farm panel designed to contain livestock. The name stuck, but the product evolved. Today's hog wire fencing is a rigid panel made of heavy steel wire welded into a grid pattern. Each intersection is welded (not twisted, not woven), which gives the panel its signature clean, uniform look.
The key identifier: you are looking at a flat, rigid panel with evenly spaced rectangular or square openings. It does not sag, does not roll, and does not drape like chicken wire or field fence. It holds its shape because the wire is thick enough and the welds are strong enough to create a self-supporting structure.
That rigidity is what separates hog wire from the floppy, rolled wire products at big-box stores. When someone points at a fence and says "that is hog wire," they are almost always referring to this stiff, grid-style panel framed in wood or metal.
Visual Characteristics: What Hog Wire Actually Looks Like
Grid Pattern
The most recognisable feature. Standard residential hog wire panels have openings in one of these common configurations:
- 4x4 inch square grid the most popular for modern residential fencing. Clean, symmetrical, contemporary.
- 2x4 inch rectangular grid tighter spacing on one axis, offering slightly more visual depth and a different rhythm.
- 2x2 inch or 1x1 inch grid the tightest options, used when small animal containment is a priority or when a finer, more solid-looking aesthetic is wanted.
Wire Thickness
This is where hog wire visually separates itself from lighter wire products. Quality hog wire uses thick, visible wire that you can clearly see from 6 metres away. BarrierBoss panels use 6-gauge wire with a diameter of roughly 0.192 inches (approximately 4.88mm). That is noticeably substantial. You can see each wire casting a shadow. Compare that to thin 14-gauge wire (0.080 inches), which almost disappears at a distance and looks flimsy up close.
Overall Appearance
From a distance, a hog wire fence reads as a semi-transparent barrier. You see through it, but the grid pattern creates visual texture. It does not block views like a solid wood fence, and it does not look chaotic like chain link. It sits in a sweet spot: structured, open, and architectural.
Hog Wire vs. Other Wire Fencing: A Visual Comparison
| Feature | Hog Wire Panel | Chain Link | Welded Wire Mesh | Chicken Wire |
|---|---|---|---|---|
| Pattern | Square or rectangular grid | Diamond zigzag weave | Square grid (smaller openings) | Hexagonal twist |
| Wire Gauge (BarrierBoss) | 6-gauge throughout | 6 to 11.5-gauge | 14 to 10-gauge | 20 to 22-gauge |
| Rigidity | Rigid, self-supporting | Flexible, needs tension | Semi-rigid | Very flexible, floppy |
| Opening Size | 2 to 4 inch typical | 2 to 2.375 inch | 1 to 2 inch typical | 1 inch hexagonal |
| Visual Style | Modern, architectural | Industrial, utilitarian | Functional, low-profile | Rustic, lightweight |
| Residential Curb Appeal | High | Low | Medium | Low |
The dead giveaway? Hog wire has that thick, evenly spaced grid that looks intentional and designed. Chain link has the woven diamond pattern. Welded wire mesh has a similar grid but with much thinner wire and smaller openings. Chicken wire is the lightest of all, with its signature hexagonal twist pattern and wire so thin you can bend it with your fingers.
How Wire Gauge Changes the Look
Two hog wire panels can have the same grid pattern but look completely different based on wire gauge. Remember: lower gauge number equals thicker, stronger wire.
That thickness is what gives hog wire its signature "you can see it but you can also see through it" aesthetic. BarrierBoss 6-gauge panels hold their shape for decades. Thin-gauge alternatives start sagging and bowing within a few seasons.
Frame Styles That Change the Whole Aesthetic
Hog wire panels are almost never installed alone. The frame material dramatically changes what the finished fence looks like.
Wood Frame (Most Popular)
Cedar or pressure-treated 4x4 posts with 2x4 or 2x6 rails, hog wire panels inset between the rails. This is the classic modern farmhouse look. The warm wood contrasts with the cool metal grid. Over time, the wood weathers to grey while the metal holds its finish, creating a two-tone effect that ages well.

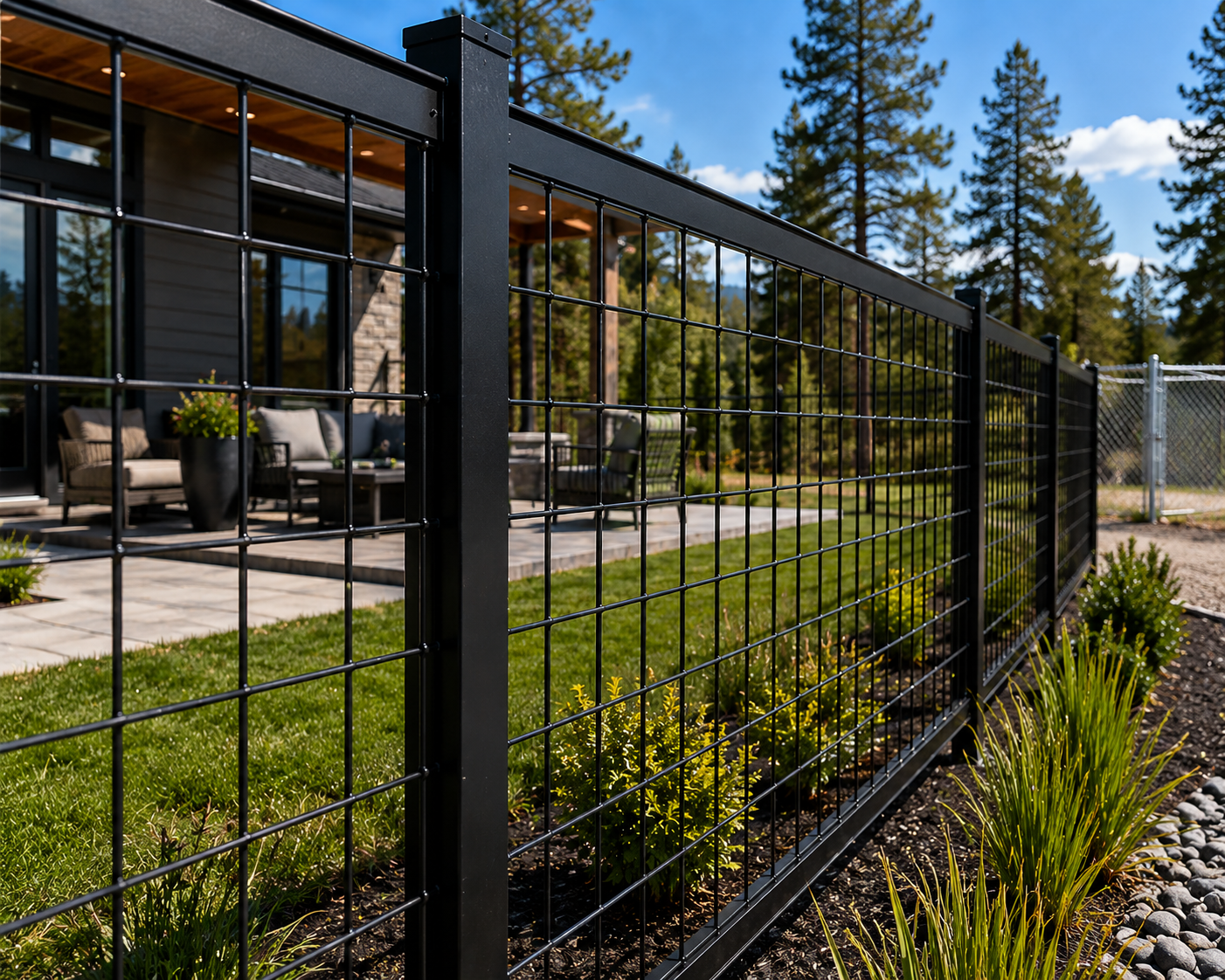

Metal Frame
Steel tube framing in black or dark brown creates a fully industrial-modern look. Cleaner lines, thinner profiles, zero wood maintenance. This style is showing up in commercial projects, rooftop patios, and contemporary residential builds across Canada in 2026. BarrierBoss all-steel fence kits are the most popular expression of this approach.
Composite or Mixed-Material Frame
Some builders use composite lumber or mix metal posts with wood rails. The visual effect depends on the materials chosen, but the hog wire panel inside always reads the same way: structured, open, geometric.
For properties where you want more visual privacy while keeping a modern metal look, consider pairing hog wire sections with solid corrugated metal fence panels. The combination of open grid and solid corrugated sections is one of the strongest design trends in 2026 residential fencing.
Finish and Colour: Why Coating Matters
Raw galvanized hog wire has a shiny, silvery look that mellows to matte grey over time. It is functional but not exactly design-forward. That is why finish matters significantly to the final look.
BarrierBoss hog wire panels start with an electrogalvanized base for corrosion resistance, then receive a dip-coated finish. This process creates an even, consistent coating that does not chip or peel the way spray-applied finishes do. The result is a smooth, matte surface available in black, brown, silver, green, and rust/patina.
The dip-coated finish changes the look significantly. A black dip-coated hog wire panel recedes visually against most backgrounds, making the fence feel lighter and more transparent. Brown adds warmth that pairs well with cedar framing. Rust and patina finishes suit properties going for a weathered industrial or Corten aesthetic. All five options look dramatically more refined than bare galvanized wire.
Where Hog Wire Works Best in 2026
- Backyard perimeter fencing maintains sightlines while defining your property boundary
- Deck and patio railings meets code for fall protection while keeping views open
- Garden enclosures keeps deer out, lets you see your plants, supports climbing vines
- Pool fencing check local building code for opening size requirements; tighter mesh options comply with most Canadian pool barrier regulations
- Commercial patios and restaurant seating areas defines space without creating a closed-in feel
- Property line fencing on slopes rigid panels handle grade changes better than flexible wire
Cost Expectations for 2026 in Canada
Installed hog wire fencing typically runs $30 to $55 per linear foot in Canada in 2026, depending on frame material, panel quality, and your local labour market. Budget panels with thin 11-gauge or 14-gauge wire save you a few dollars per foot upfront but cost you the entire fence when they start sagging and rusting within 3 to 5 years.
BarrierBoss 6-gauge dip-coated panels with a 40-year warranty cost more per panel but dramatically less per year of service life. And because BarrierBoss sells factory-direct with no distributor markup, no import duties, and no cross-border delays, you are getting premium-spec Canadian-made panels at pricing that competes with mid-tier imported products.
Frequently Asked Questions
Is Hog Wire the Same as Welded Wire?
Hog wire is a type of welded wire, but not all welded wire is hog wire. The difference is wire gauge and opening size. Hog wire uses significantly thicker wire (6-gauge at BarrierBoss) with larger openings (2 to 4 inches), while generic welded wire mesh uses thinner wire (14-gauge and up) with smaller openings (1 to 2 inches). Visually, hog wire looks bolder, more structured, and more intentional.
Does a Hog Wire Fence Look Cheap?
It depends entirely on wire gauge and framing. A 14-gauge panel stapled inside a rough-cut 2x4 frame? Yes, that looks cheap. A 6-gauge dip-coated panel set in a cedar or steel tube frame? That looks like a premium fence because it is one. The wire gauge is literally the difference between "farm supply afterthought" and "architect-specified material."
Can You See Through Hog Wire Fencing?
Yes. Hog wire is semi-transparent. With standard 4x4 inch grid openings, you can see through roughly 85 to 90 percent of the panel. It defines a boundary without blocking views, breezes, or light. If you want more privacy, you can train climbing plants on it, pair it with corrugated metal sections, or choose panels with tighter 2x4 inch or 2x2 inch grid spacing.
What Colours Does Hog Wire Come In?
Raw galvanized is silver-grey. BarrierBoss dip-coated panels are available in black, brown, silver, green, and rust/patina finishes. Black is by far the most popular for residential use because it recedes visually, making the fence feel lighter and more open. Brown pairs well with cedar framing for a warm, natural look.
How Long Does Hog Wire Fencing Last?
That depends on wire gauge and coating. Thin, bare galvanized wire can start showing surface rust within 5 to 8 years. BarrierBoss 6-gauge panels with an electrogalvanized base and dip-coated finish are built to last decades and backed by a 40-year warranty. The dual-layer protection handles corrosion, UV, and weathering across the full range of Canadian climates.
Ready to See Hog Wire in Your Yard?
Now you know exactly what hog wire looks like, what separates good panels from cheap ones, and why wire gauge and finish are the two details that matter most. Browse the BarrierBoss Canada collection to see 6-gauge dip-coated panels with specs, dimensions, and current pricing. Canadian-made, factory-direct, 40-year warranty, delivered and unloaded by our own crew.
Shop These Products
Black Hog Wire Fence Panels
6-gauge electrogalvanized wire with dip-coated finish. The wire gauge and coating that give hog wire its signature look and 40-year performance. Framed or unframed.
From $49.99 CAD

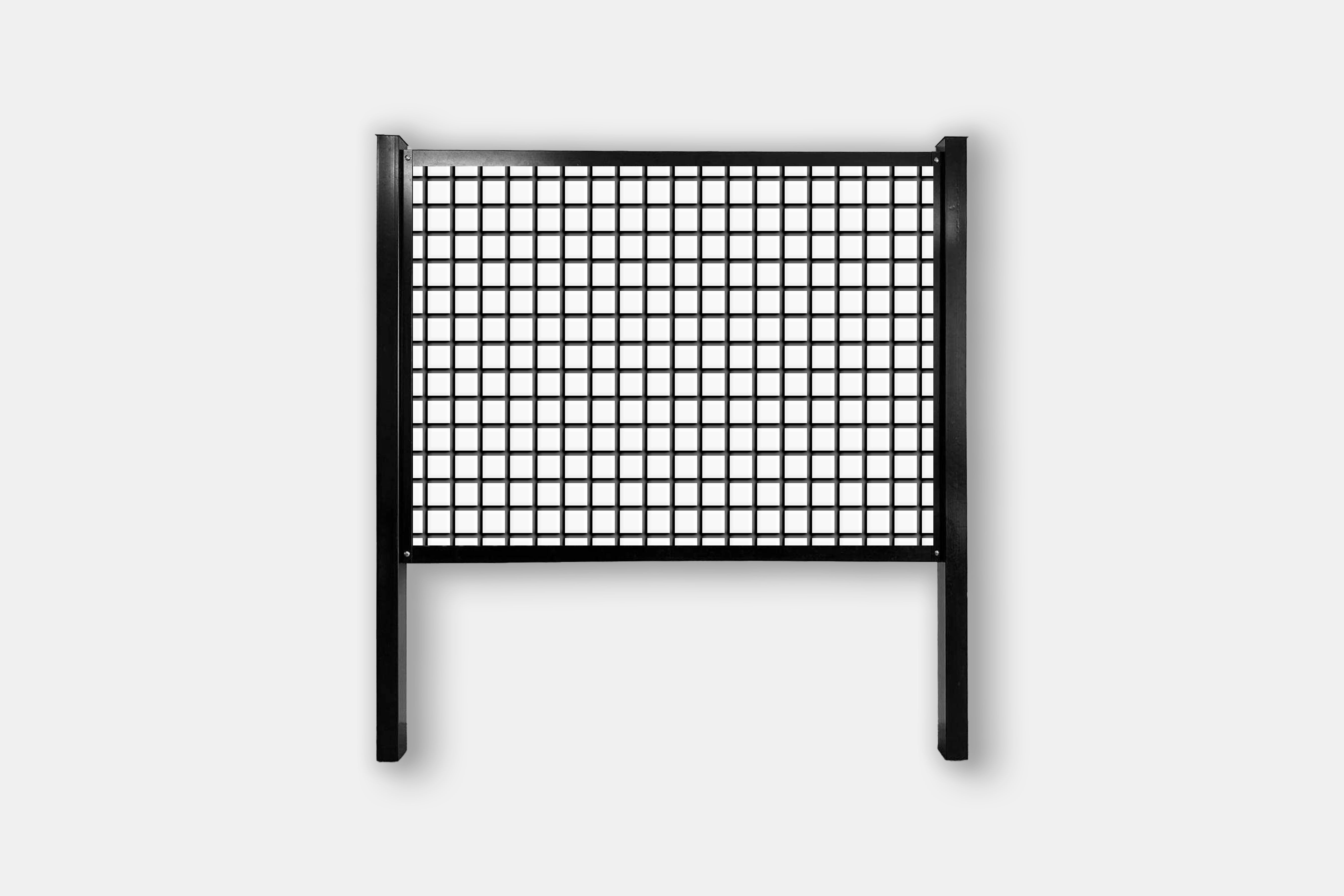

Hog Wire Metal Fence Kit (The Pacific)
