What Size Does a Hog Panel Come In? The Complete Guide to Hog Wire Panel Dimensions
Eight Sizes, Four Mesh Openings: Sizing a Hog Wire Panel Without Guesswork
You typed "what size does a hog panel come in?" because you're standing in your yard, measuring posts, and you need a real answer, not a vague product blurb. Here's everything you need to know about hog panel sizes, grid patterns, wire gauges, and which dimensions actually work for fences, deck railings, and garden trellises across Canada.
TL;DR
- Standard farm-store hog panels: typically 16 ft (4.88 m) long by 34 in (864 mm) tall, with graduated grid openings. Designed for livestock, not aesthetics, and an awkward length for almost any residential fence bay.
- BarrierBoss hog wire panels come in eight sizes: 3x6, 3x8, 4x6, 4x8, 5x6, 5x8, 6x8, and 8x8 feet (height by width). The 3x6 is the most popular.
- Four mesh openings: 4x4, 2x2, 2x6, and 1x1 inches, on centre. Mesh choice matters as much as panel size.
- Three frame options: unframed (ships fastest), pressure-treated, or Western Red Cedar, both framed in 2x4 lumber.
- Wire gauge matters more than panel size. BarrierBoss uses 6-gauge (5.5 mm) hot-dipped, heavy galvanized after welding, then dip-coated. Not the thin 11-gauge or 14-gauge in budget panels.
- Pricing starts at $49.99 CAD for a 3x6 unframed panel, with a 40-year warranty on the wire and finish.
Standard Hog Panel Sizes: Farm Store vs. Fencing Grade
The term "hog panel" originally referred to livestock confinement panels sold at farm supply stores. Those panels follow a pretty standard template:
| Panel Type | Typical Length | Typical Height | Wire Gauge | Grid Pattern |
|---|---|---|---|---|
| Farm-store hog panel | 16 ft (4.88 m) | 34 in (864 mm) | Varies widely, 4-gauge down to 14-gauge | Graduated, smaller at bottom, wider at top |
| Farm-store cattle panel | 16 ft (4.88 m) | 50 in (1,270 mm) | Typically 4-gauge to 6-gauge | 6 x 8 in (152 x 203 mm) uniform |
| Combo / utility panel | 16 ft (4.88 m) | 48 in (1,219 mm) | Typically 11-gauge to 14-gauge | Mixed |
There's a big problem with using these for residential fencing or deck railings: they're 16 feet long. That's an awkward span for most fence bays. You end up cutting, wasting material, and dealing with raw-cut wire ends that rust because the galvanizing is compromised. The graduated grid pattern also looks, well, agricultural. That's fine for keeping piglets contained. Less fine for your backyard patio.
BarrierBoss Hog Wire Panel Dimensions
BarrierBoss designs hog wire panels specifically for residential and commercial fence and railing applications, not livestock. That means the sizes are built around standard post spacing and common fence heights across Canada. Here are the actual numbers.

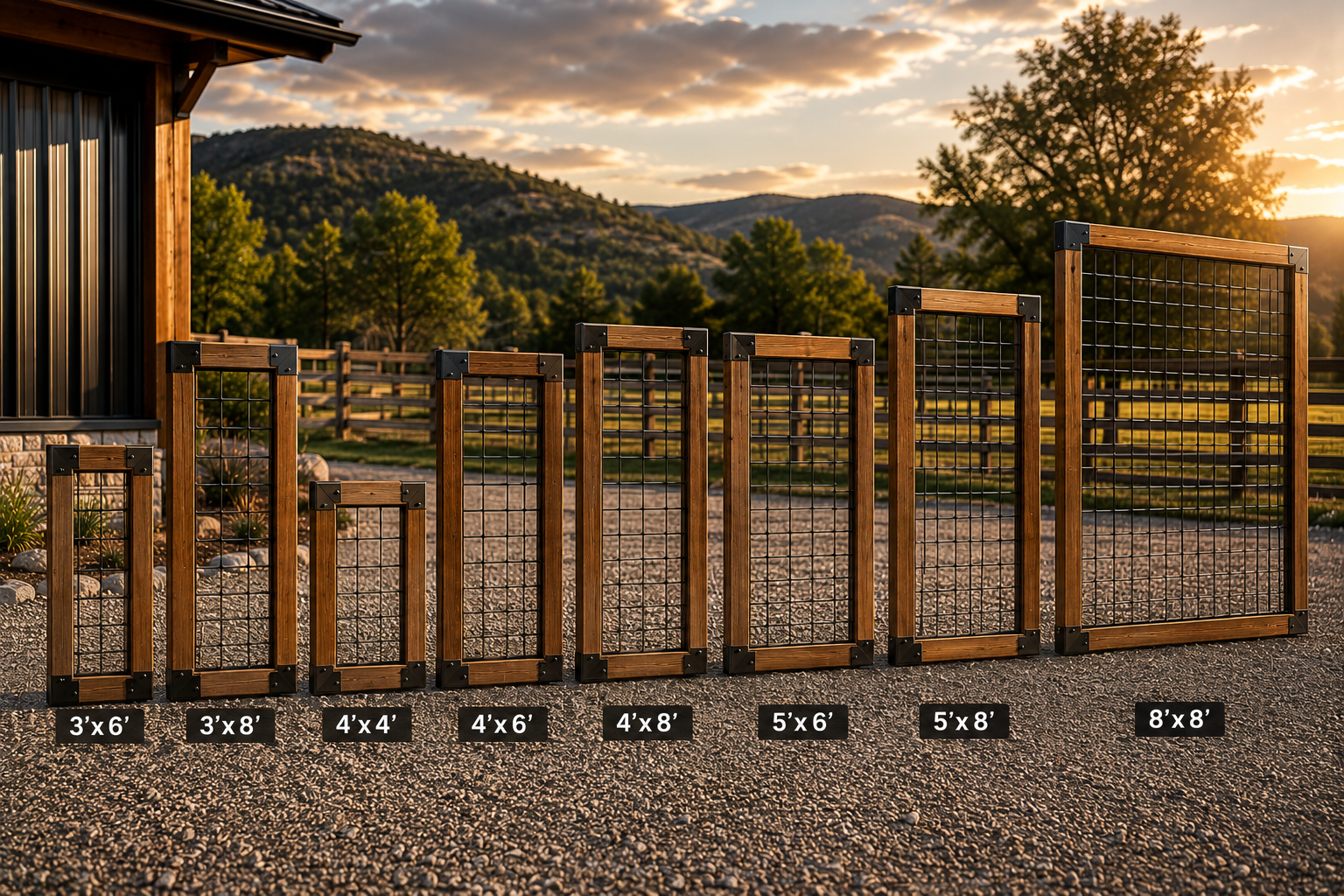

The Eight Standard Sizes
| Size (Height x Width) | Metric | Best Suited To |
|---|---|---|
| 3 ft x 6 ft (most popular) | 0.9 m x 1.8 m | Deck and patio railings, garden borders, raised beds |
| 3 ft x 8 ft | 0.9 m x 2.4 m | Railings on wider bays, low garden fencing |
| 4 ft x 6 ft | 1.2 m x 1.8 m | Front yard fencing, pet containment, pool surrounds |
| 4 ft x 8 ft | 1.2 m x 2.4 m | Property lines with 8 ft post spacing, dog runs |
| 5 ft x 6 ft | 1.5 m x 1.8 m | Taller boundary fencing, livestock |
| 5 ft x 8 ft | 1.5 m x 2.4 m | Acreage perimeters, fewer posts per run |
| 6 ft x 8 ft | 1.8 m x 2.4 m | Full-height boundary fencing, maximum coverage per panel |
| 8 ft x 8 ft | 2.4 m x 2.4 m | Commercial, security, and tall screening applications |
That gives you heights of 3, 4, 5, 6, and 8 feet, and widths of 6 or 8 feet. Note the orientation: the first number is height, the second is width. A 3x6 is a low, wide panel suited to railings. A 6x8 is a full-height fence panel.
Key Specs
- Wire: 6-gauge (5.5 mm before coating, 6.5 mm after), hot-dipped and heavy galvanized after welding, then finished with a thick fluidized dip-coat.
- Mesh openings: 4x4, 2x2, 2x6, or 1x1 inches, measured on centre. Uniform across the panel, not graduated.
- Frame options: unframed (ships fastest), pressure-treated 2x4, or Western Red Cedar 2x4.
- Colour: Midnight Black, with silver, brown, corten, and 316 stainless available in other lines.
- Custom sizing: available, cut to order at the factory.
- Warranty: 40 years on the wire and finish.
Grid Opening Patterns Explained
Panel size isn't just height by width. The grid opening dimensions are arguably more important, especially for safety and aesthetics.
Graduated vs. Uniform Grid
- Graduated (farm-style): openings are smaller near the bottom (often 3 x 2 in / 76 x 51 mm) and larger at the top (6 x 8 in / 152 x 203 mm). Purpose: keep small piglets from squeezing through at ground level. Looks like a farm panel because it is one.
- Uniform (fencing-grade): consistent opening size across the entire panel. Cleaner look. Easier to plan around code requirements since every opening is the same dimension.
BarrierBoss panels use uniform grid openings, and you pick the opening rather than accepting whatever the farm panel came with. Four choices:
| Mesh Opening | Metric | Best For | Availability |
|---|---|---|---|
| 4 x 4 in | 102 x 102 mm | The classic grid. Property lines, livestock, deck railings, climbing plants, open sightlines. | Standard |
| 2 x 2 in | 51 x 51 mm | Small dogs, young goats, lambs, garden protection from rabbits and groundhogs. | Standard |
| 2 x 6 in | 51 x 152 mm | Extra airflow, distinctive linear look, upright runs and larger stock. | Special order, adds 6 to 8 weeks |
| 1 x 1 in | 25 x 25 mm | The tightest weave. Poultry, chicks, rabbits, kittens, and small pets. | Special order, adds 6 to 8 weeks |
Worth planning around: the 2x6 and 1x1 openings are special-order items that add roughly 6 to 8 weeks of production time. If you need a tight mesh for poultry or small pets, order early rather than discovering the lead time in week one of your build.
Wire Gauge: Why Size Alone Doesn't Tell the Story
You can find two hog wire panels that are the same physical dimensions, same height, same width, same grid opening, and one will outlast the other by decades. The difference is in the wire and the finish.
| Spec | BarrierBoss 6-Gauge Dip-Coated | Typical Budget Panel (11 or 14-gauge) |
|---|---|---|
| Wire thickness | 6-gauge (5.5 mm), thick and rigid | 11-gauge (3.05 mm) or 14-gauge (1.63 mm), thin and flexible |
| Galvanizing method | Hot-dipped, heavy galvanized AFTER welding | Pre-galvanized wire welded together, zinc burns off at weld points |
| Finish | Fluidized dip-coat over galvanized base | Often bare galvanized or light dip-coating |
| Weld protection | Full zinc coverage on welds, no bare-steel points | Hundreds of bare-steel weld intersections exposed to moisture |
| Warranty | 40 years | Typically 15 years or less |
| Rust failure point | Protected, welds sealed under galvanizing and dip-coat | Welds rust first, visible orange at every intersection within a few years |
Here's the physics: when you weld pre-galvanized wire, the welding heat burns through the thin zinc coating at every single intersection. A standard hog panel has hundreds of weld points. That means hundreds of bare-steel spots where corrosion starts first. You'll see it as orange rust blooms at every cross-wire within a few years, especially in wet coastal climates like BC's Lower Mainland or Atlantic Canada.
BarrierBoss panels are galvanized after welding. The entire panel, wire, welds, every intersection, is hot-dipped and heavy galvanized, then dip-coated. The welds, the natural weak point of any welded panel, are protected like every other millimetre of wire. That's how we back them for 40 years and mean it.
Which Size for Which Application?
Deck and Patio Railings
Go with the 3x6 or 3x8. At 3 feet tall, the panel sits inside a wood or metal rail frame and the combined assembly lands in the range most residential guards need. Mesh matters more than size here: choose 4x4 or tighter, and confirm the maximum opening dimension with your provincial or municipal building authority before ordering.
Front Yard and Pet Fencing
The 4x6 or 4x8 is the sweet spot. Four feet contains most dogs without walling off the yard, and the 8-foot width halves your post count on a long run. For small dogs, drop to 2x2 mesh. For cats or poultry, 1x1.
Property-Line and Boundary Fencing
The 5x8 or 6x8. Hog wire in a wood or steel frame is one of the most popular modern fence styles across Canada right now, and the 8-foot width means fewer posts, fewer footings, and fewer holes to dig. Panel widths that match your post spacing eliminate on-site cutting entirely.
Garden Trellises and Raised Beds
The 3x6 again. The 6-gauge wire is rigid enough to support heavy vine crops, tomatoes, cucumbers, pole beans, without sagging the way thin 14-gauge welded wire bows under load. Use 4x4 mesh so the plants have something to grab, or 2x2 if you're also keeping rabbits out.
Commercial, Security, and Tall Screening
The 8x8. Note that 8x8 panels in the 2x6 and 1x1 mesh openings are currently out of stock, so if you need that combination, contact the team about lead times before you plan around it.
Can You Cut Hog Panels to Custom Sizes?
Physically, yes. An angle grinder with a cut-off wheel or heavy bolt cutters will get through 6-gauge wire. Whether you should is a different question, and the answer is usually no.
Two reasons. First, every cut creates an exposed wire end where the dip-coat and galvanizing are compromised, which is exactly where rust starts. Second, and more importantly: cutting, drilling, or altering the steel voids the 40-year warranty on the modified component. You'd be trading four decades of coverage for one afternoon of convenience.
The better answer: BarrierBoss cuts to order. If your bay width is unusual or your railing section is non-standard, ask for a custom size before you cut. You keep the warranty, you skip the grinder, and the panel arrives finished on every edge.
If you do end up cutting in the field, touch up the cut ends with a zinc-rich cold galvanizing spray. It won't restore the warranty, but it will slow the corrosion.
Canadian Building Code Considerations
Panel size directly affects code compliance in two ways:
- Guard and railing height: the National Building Code of Canada (NBC) and provincial codes (BC Building Code, Ontario Building Code, Alberta Building Code, and others) specify minimum guard heights for decks, balconies, and elevated surfaces. Panel height plus any frame must meet or exceed the required dimension. Confirm the exact requirement with your local building authority, since it varies by application and jurisdiction.
- Opening size: guards must limit the size of openings to prevent small children from passing through. The maximum allowable opening varies by province and application. Your mesh choice needs to comply. Check CSA standards and your provincial code before finalizing panel selection.
We don't quote specific code numbers here because they vary by province, territory, and municipality, and getting it wrong is a safety issue. Your local building department is the definitive source.
Getting Full-Size Panels to Your Property
Here's a practical concern most people don't think about until they've ordered: how do you get rigid metal panels delivered without damage?
Third-party LTL carriers ship hog panels to a freight terminal. You drive there, they forklift a pallet onto your truck (if you have one big enough), and any shipping damage is your problem to claim. Or they'll curb-drop at your house: dump the pallet at the curb and leave. You're on your own moving 6-gauge steel panels off the pallet and into your yard.
BarrierBoss delivers on our own trucks with our own crew, and the heavy framed and metal panels come off on our own crane truck, set where you want them. No terminal transfers, no forklift needed on your end, and every order is freight-insured end to end. Delivery is flat-rate across British Columbia and Alberta, priced by order subtotal:
| Order Subtotal | Delivery & Unload |
|---|---|
| $500 to $2,499 | $149 |
| $2,500 to $4,999 | $249 |
| $5,000 to $9,999 | $349 |
| $10,000 and up | $449 |
There's a $500 order minimum, and free pickup is available at our West Kelowna HQ. Panels are built to order, so plan for roughly 3 to 4 weeks on unframed panels and 6 to 8 weeks on framed ones.
Frequently Asked Questions
What Is the Standard Size of a Hog Panel in Canada?
Traditional farm-store hog panels are typically 16 ft (4.88 m) long by 34 in (864 mm) tall with graduated grid openings, designed for livestock. BarrierBoss offers eight purpose-built sizes for fencing and railing: 3x6, 3x8, 4x6, 4x8, 5x6, 5x8, 6x8, and 8x8 feet, height by width. The 3x6 is the most popular, and every width matches standard post spacing so you're not cutting off waste.
What Gauge Wire Should a Hog Panel Be for Fencing?
For residential and commercial fencing that needs to last, 6-gauge is the standard to aim for. Unlike thin 14-gauge or 11-gauge wire that bends under load and dents easily, 6-gauge holds its shape for decades. BarrierBoss uses 6-gauge (5.5 mm) wire that's hot-dipped and heavy galvanized after welding, then dip-coated, protecting every weld point from corrosion.
What Mesh Opening Should I Choose?
Four options, and the choice matters as much as panel size. Use 4x4 inches for property lines, livestock, railings, and climbing plants. Use 2x2 for small dogs, young stock, and garden protection. Use 1x1 for poultry, rabbits, and cats. Use 2x6 for maximum airflow on upright runs. The 4x4 and 2x2 are standard stock; 2x6 and 1x1 are special order and add roughly 6 to 8 weeks.
Can I Use Hog Panels for Deck Railings in Canada?
Yes, hog wire panels are widely used for deck railings across Canada, and the 3x6 or 3x8 size is built for it. Your panel dimensions and mesh opening must comply with the National Building Code of Canada (NBC), applicable provincial codes, and CSA standards. Contact your municipal building department for specific guard height and opening requirements before ordering.
How Do Hog Panel Sizes Affect Cost?
Panels sized to match your post spacing reduce waste and labour. Buying a 16 ft farm panel and cutting it to fit a 6 ft bay means paying for material you throw away, spending time cutting, and touching up exposed wire ends. BarrierBoss panels start at $49.99 CAD for a 3x6 unframed, price scales with size and mesh, and buying 10 or more panels earns a 5 percent discount. Everything is factory-direct with no distributor markup.
Do Hog Panels Come in Different Colours?
Yes. The black panels use a fluidized dip-coat over hot-dipped galvanized wire, which provides both colour and an additional layer of corrosion protection. Silver, brown, corten, and 316 stainless are available across the wider lineup.
Ready to Pick the Right Panel Size?
Now you know what size hog panels come in, and more importantly, why the wire gauge, galvanizing method, and finish matter just as much as the physical dimensions. A panel that's the right height and width but made with thin pre-galvanized wire will rust at every weld intersection within a few years. A 6-gauge, galvanized-after-welding, dip-coated panel will look the same in forty years as it does the day you install it. That's not marketing, that's metallurgy, backed by a 40-year warranty.
See All Eight Sizes → Browse Hog Wire →
Need a size that isn't on the list? We cut to order, so ask before you cut. See shipping rates and lead times.
